1 hour ago, BenEricson said:

Looks amazing until you clip the highlights.

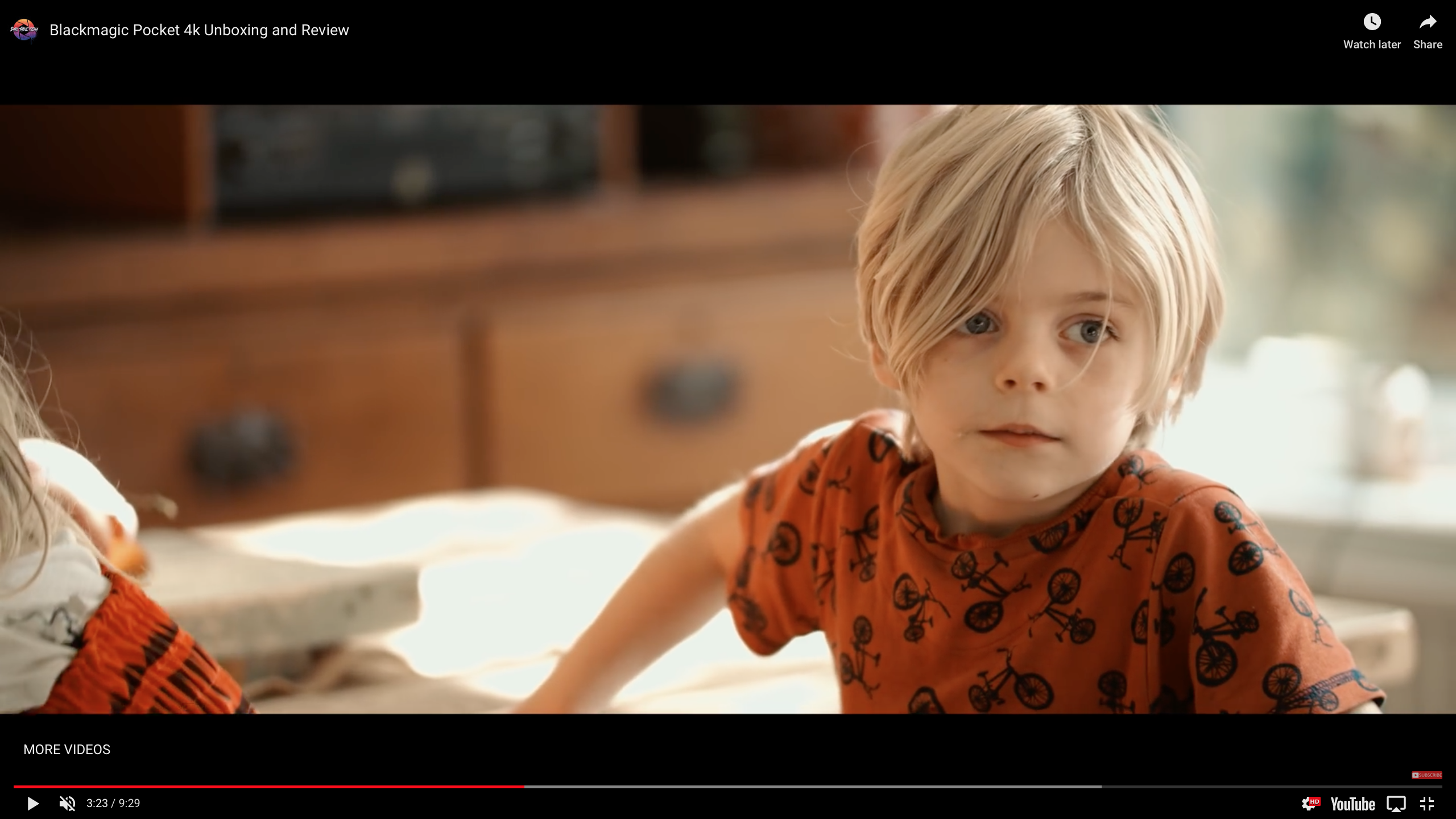

Screen Shot 2018-10-29 at 4.15.16 PM.png

So, don't clip the highlights then... ; )

In a serious note though. ETTR... Expose to the right with this device. You won't get so much noise there from the shadows. Trust me ; -)

Other than that, no camera in the world will offer you such Grail : -)

Link to comment
Share on other sites

From Cinema5D

Quote

Actually, we got a lot better DR results on ProRes with this camera as opposed to RAW. We reached out to Blackmagic Design for an explanation and received a satisfying answer, and Gunther even had a few calls with them about this to explain.

QUESTION by Gunther to Blackmagic Design:

We have recently tested the BMPCC4K dynamic range using a Xyla DSC labs 21 transmissive chart, and we stumbled across a strange behaviour of the camera:

- we tested in ProRes 4K DCI 25p and got 11.6 stops for a signal to noise ratio of 2, and 12.7 stops for a signal to noise ratio of 1 at ISO 400 (10.5 and 11.8 stops for ISO3200)

- when we tested the same DCI 4K 25p RAW (1:1) we found that the dynamic range reading was lower (by about a half stop). Only when we selected the "highlight recovery" option in DaVinci Resolve and then exported frame grabs into IMATEST we got similar results to ProRes.

This is a bit strange, because we tested also the old Pocket Cinema Camera and it had the same dynamic range reading in ProRes and RAW - and when we enabled the "highlight recovery" option in Resolve, we actually got about 0.6 stops higher DR in RAW that with ProRes.

How come that the DR of the new Pocket 4K is lower in RAW, and only matched ProRes when "highlight recovery" is selected in Resolve? Is ProRes doing this HL recovery automatically?

ANSWER from Blackmagic Design, Andy Buckland:

The Pocket Cinema Camera 4K uses our new demosaic algorithm developed with Blackmagic RAW, before encoding to ProRes. This new algorithm helps to reduce noise and improve the dynamic range in ProRes capture. With Cinema DNG RAW, the demosaic is still performed in DaVinci Resolve. That enables full control and manipulation over debayer settings, noise reduction, and highlight recovery to increase the dynamic range measurement beyond that of ProRes.

By applying minimal temporal noise reduction to the Cinema DNG RAW files in DaVinci Resolve - the lower steps on the waveform can be cleaned up nicely, bringing the available dynamic range of RAW in line with those seen in your ProRes tests. Then by enabling highlight recovery, the available dynamic range in Cinema DNG RAW increases beyond that of ProRes. ProRes users benefit from the new debayer algorithm in terms of dynamic range and reduced noise at capture, resulting in a faster turnaround. RAW users benefit from the full control and manipulation of the image, to decide which parameters they would like to tweak and finesse.



Link to comment
Share on other sites

1 hour ago, thebrothersthre3 said:

what do you mean?

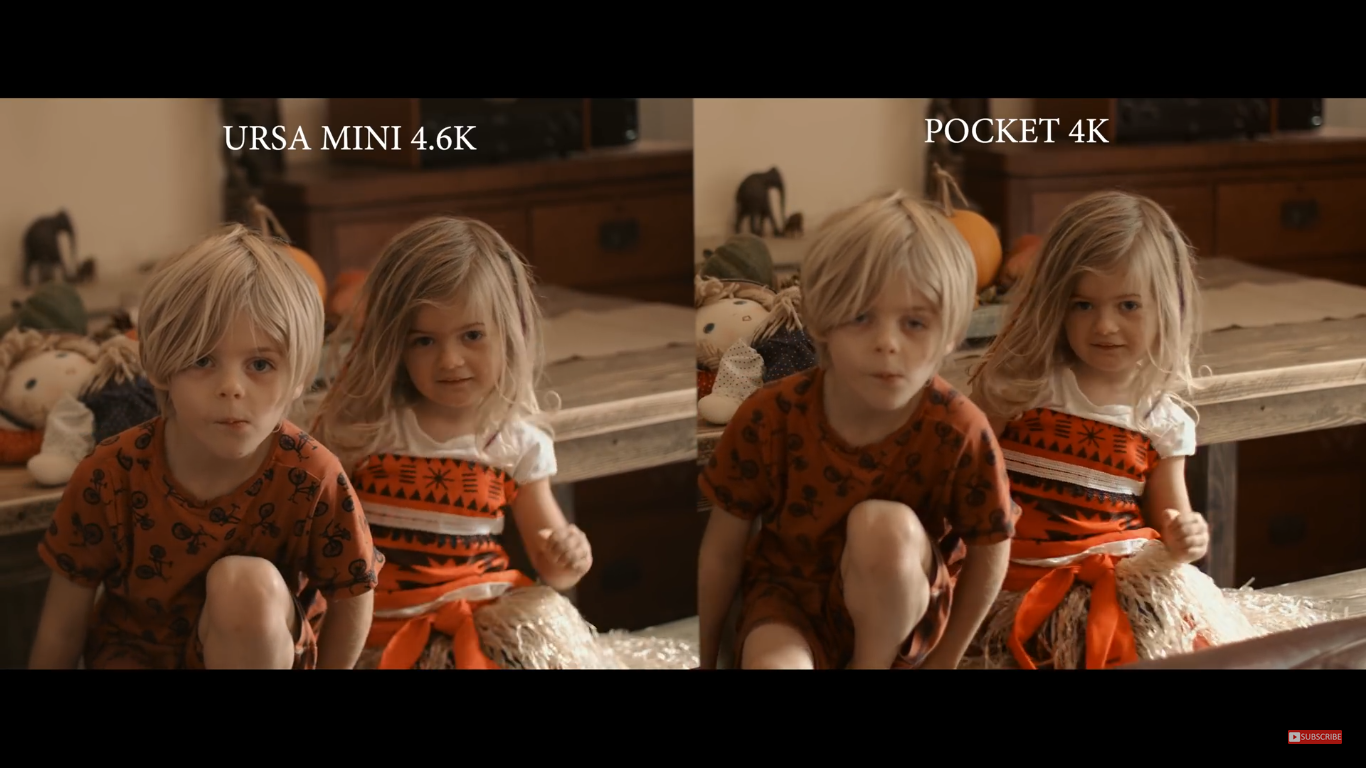

The Eisensteinian weirdness effect coexists on the simple fact the focus is not over the couple of kids, but behind the boy. Take a look on the puppet on his back. The girl is closer, obviously more focused than the male counterpart.

His post is only reflecting all that; poster's reaction.



Operator's mistake, not the camera for Christ's sake! : -)

Link to comment
Share on other sites

Today, I managed the impossible!

Used the Pocket4K as a B Camera to the F5. Shot seven, five minute interviews, all run n gun style,  all handheld with no additional accessories (using Canon 24-105 and Speedbooster XL) plus some B-Roll footage over the coarse of 8 hrs. Went through one and a half Canon LP-E6n batteries, they didn't get stuck, the battery door never flung open, the shots were steady (despite no IBIS!), they were in focus (Despite no AF or Focus Puller!)....and the Director was impressed with the footage despite shooting ProRes422 to SD cards. Must have been a fluke cos I'm constantly hearing that this type of shooting is impossible. ?

Seriously though, Tilta look to be doing great things with accessories for the P4K and I love the integrated NP-F battery and SSD Slot in the grip. The only issue is that it makes the camera too wide. There really isn't any need for a handle on the left side of the camera so I would rather see a solution that has a battery or two in a battery grip that attaches to the bottom of the camera in a similar fashion to a Canon DSLR grip that would allow hot swapping batteries. Can't be too hard right?

Link to comment
Share on other sites

15 minutes ago, A_Urquhart said:

(...) using Canon 24-105 and Speedbooster XL (...)

(...) despite no IBIS! (...)

(...) Despite no AF or Focus Puller! (...)



LOL Despite all those "despites" ; )

...what about glass to only cover the S35 format aka APS-C? Any experience with that coupled to SB on P4K?

Any vignetting?

Is tap-to-focus working with the adapter?

Link to comment
Share on other sites

1 hour ago, Emanuel said:

LOL Despite all those "despites" ; )

...what about glass to only cover the S35 format aka APS-C? Any experience with that coupled to SB on P4K?

Any vignetting?

Is tap-to-focus working with the adapter?

I know, crazy right?

Tap to focus doesn't currently work with the Speedbooster XL. I haven't heard of anyone using any speed booster getting the tap to focus working.

The Speedbooster XL is best for for full frame lenses on the Pocket. The Sigma 18-35 vignettes with the XL so a .71 Speedbooster would be best for APS-C lenses.



Link to comment
Share on other sites

19 minutes ago, A_Urquhart said:

I know, crazy right?

Tap to focus doesn't currently work with the Speedbooster XL. I haven't heard of anyone using any speed booster getting the tap to focus working.

The Speedbooster XL is best for for full frame lenses on the Pocket. The Sigma 18-35 vignettes with the XL so a .71 Speedbooster would be best for APS-C lenses.



Crazy, why?

I only find something crazy when it is completely unexpected. Is it?



Well, tap-to-focus is a sort of autofocus or half AF as you wish. Manual focus, definitely, is not.



Indeed. SB XL is designed for FF while Ultra model for APS-C coverage, but there's also some glass which covers FF such as 18-35mm f/1.8 other than the wide end.

A Nikon mount adapter is dumb, some smart adapters give it when used with GH5 series as for instance. I am wondering what about P4K?

Link to comment
Share on other sites

26 minutes ago, Emanuel said:

Indeed. SB XL is designed for FF while Ultra model for APS-C coverage, but there's also some glass which covers FF such as 18-35mm f/1.8 other than the wide end.

For people getting their hopes up, this is slightly misleading. My experience has been the following:

The 18-35 will vignette even on a .71x ('ultra') speedbooster until about 20mm in DCI 4K (only barely and not worth mentioning in Ultra HD). It's sort of usable but the vignette is definitely there across the whole left and right side and it's relatively severe.

It will basically be unusable on full frame on my A7RII until 35mm, at which point you might as well use the lighter, better, brighter 35mm 1.4 ART.

Link to comment
Share on other sites

3 hours ago, seanzzxx said:

For people getting their hopes up, this is slightly misleading. My experience has been the following:

The 18-35 will vignette even on a .71x ('ultra') speedbooster until about 20mm in DCI 4K (only barely and not worth mentioning in Ultra HD). It's sort of usable but the vignette is definitely there across the whole left and right side and it's relatively severe.

It will basically be unusable on full frame on my A7RII until 35mm, at which point you might as well use the lighter, better, brighter 35mm 1.4 ART.

Not seen any problem with my Viltrox .71 and yes it will be unusable on full frame as it's an APS-C lens.

Link to comment
Share on other sites

That's weird, because I definitely am. Are you shooting at the full sensor width? I'll get some screen caps later today :)

Also my comment about full frame was in reference to Emanuel saying the lens is usable at full frame except for the wide end while my experience is that that's not really true.

Link to comment
Share on other sites

Messing around with my external monitor and looking at the scopes I can see that the zebras are linked to the red channel so all the more reason to make sure you WB correctly to avoid clipped highlights if you are using the zebras to ETTR. The GH5 along with many other cameras have the zebras linked to the green channel. Maybe BM want to avoid the user clipping skin tones above all else? Never understood why manufacturers need to just link zebras to a single channel and not have it work when any channel clips????

Link to comment
Share on other sites

18 hours ago, Anaconda_ said:

I've saved my LUT as .cube, like the others I've used, and even saved it in different ways. First just with the burger menu in Lumetri, then using Red Giant's LUT Buddy.

As others noted, the camera accepts either 17^3 size cubes, or 33^3 size cubes. Yours is 16^3. I've converted your LUT to 17^3 using Lattice and this should work.

Custom_Made_17.cube

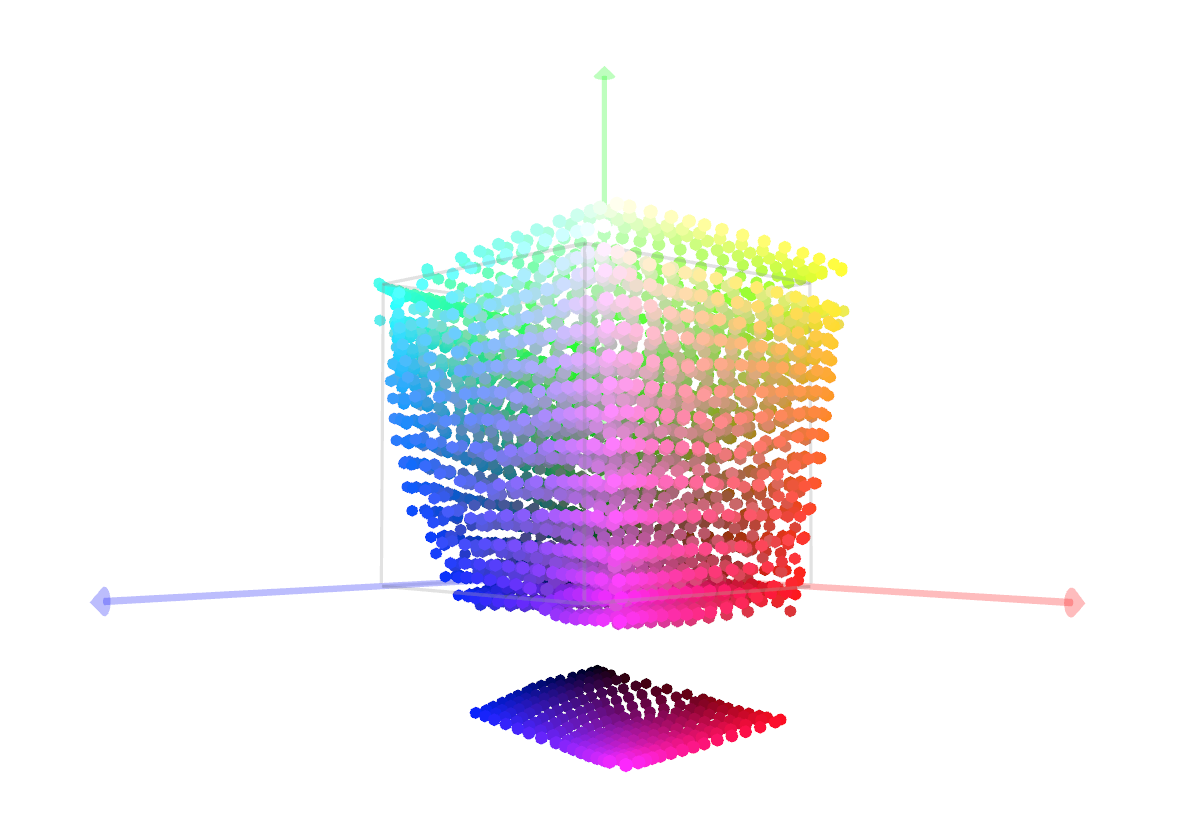

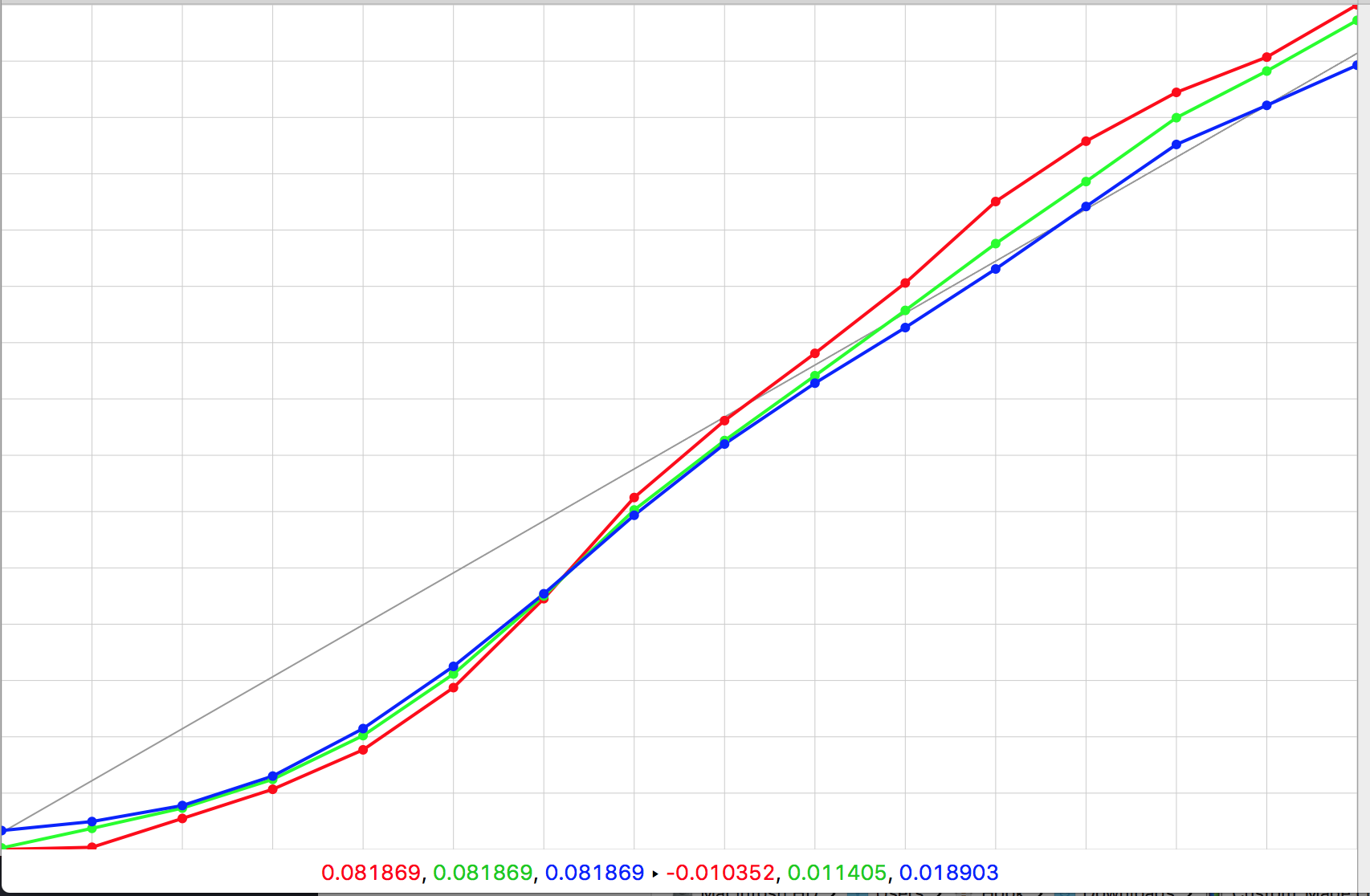

FYI, i would be careful with your LUT as you can see from the cube visualization there an odd gap at the bottom and the curves are not overly smooth (though I've seen much worse curves).
