Canon XC10 4K camcorder


Andrew Reid
 Share

Recommended Posts

Got my XC10 this morning. Still playing with it when I really should be working! As promised I slapped an Isco pre36 on it to see if it's usable. Shots below are at 24mm, 80, 240 and 80.

isco xc10_00338_1.jpg

isco xc10_00339_1.jpg

isco xc10_00340_1.jpgisco xc10_00341_1.jpg

There's slight vignetting at 80mm, which turns to pronounced white vignetting when pointed at a light source. Nevertheless, it's nice to have the option of a stabilised 80-240 anamorphic, even if it is at 5.6 on a 1" sensor.

Link to comment
Share on other sites

EOSHD Pro Color 5 for Sony cameras EOSHD Z LOG for Nikon CamerasEOSHD C-LOG and Film Profiles for All Canon DSLRs
6 hours ago, kidzrevil said:

Yeah this is in ny! I live here you know :-D

This was with a black satin though. Works well with CLOG as it smooths the shadow transitions and fine detail...that usually helps the image compress better. Im gonna try using a heavier grade soon since this grade of filter was so light

Ha, yeah I know, but I thought you said you were in LA. I've gotta try one of them contrast filters. Have you ever tried the Schneider Digicon filters?

Link to comment
Share on other sites

On 8/14/2016 at 11:58 AM, Lintelfilm said:

Has anyone else noticed weird ghosting/banding with the XC10? It's most visible in out of focus areas (hence blurred images below). I've noticed it most in 4K though not sure about HD. My best guess is it's something to do with IS but I really have no idea. I've never seen anything like it before. Images below (look at the skin/face in the first two, and to the right of the face in profile on the last image for a "ghost profile" in the shadow). Very weird.XC10_banding_1.jpgXC10_banding_2.jpgXC10_banding_3.jpg).



The XC10 manual says "ghosting, artefacts and/or dark areas may appear when using Dynamic IS" --- however Dynamic IS isn't available in 4K mode (which the frame grabs above are from). I'll do some tests with/without IS but if anyone has experienced this too I'd like to hear about it.



Yes, I see it and it's not pretty! I noticed it first in HD (after firmware update) and to a lesser extent in 4K. Switching between IS modes makes no difference but it does increase with ISO.

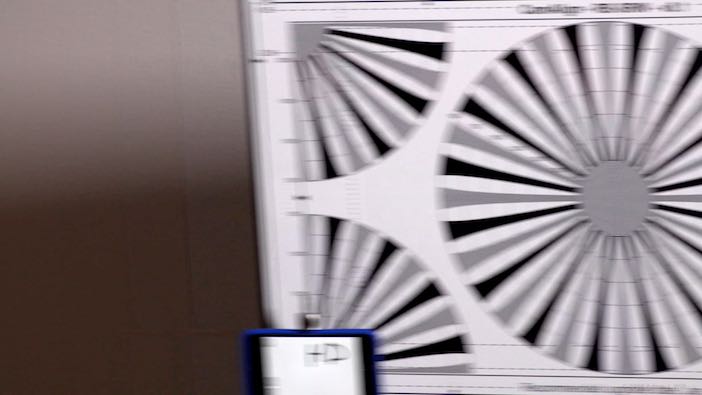

It makes HD footage unusable at 3200 if there's any movement of high contrast areas. The DV Info review points it out and theorises that the ghosting artifacts are due to an in-camera temporal noise reduction. The reviewer spotted it during a rolling shutter test:


Now that I've seen it in my own footage I can't unsee it! It seems to even be present, but very subtly, at 500. Whack up the ISO a bit, zoom in on a contrasty line and wiggle the camera a bit. You'll see it too ?

Now, I know the latest firmware "improved" high ISO performance in HD. But has it caused a worsening of ghosting? I took only a handful of shots before updating so I can't really check for sure. Of course, the sensible thing would be to have an option to disable all noise reduction but... it's Canon.

Link to comment
Share on other sites

18 hours ago, mercer said:

Ha, yeah I know, but I thought you said you were in LA. I've gotta try one of them contrast filters. Have you ever tried the Schneider Digicon filters?

Yeah im in LA just for a gig but ill be back on the 17th. Haven't tried the digicon but I hear good things about em. The tiffen ultracons are great too!

5 hours ago, hyalinejim said:

Yes, I see it and it's not pretty! I noticed it first in HD (after firmware update) and to a lesser extent in 4K. Switching between IS modes makes no difference but it does increase with ISO.

It makes HD footage unusable at 3200 if there's any movement of high contrast areas. The DV Info review points it out and theorises that the ghosting artifacts are due to an in-camera temporal noise reduction. The reviewer spotted it during a rolling shutter test:


Now that I've seen it in my own footage I can't unsee it! It seems to even be present, but very subtly, at 500. Whack up the ISO a bit, zoom in on a contrasty line and wiggle the camera a bit. You'll see it too ?

Now, I know the latest firmware "improved" high ISO performance in HD. But has it caused a worsening of ghosting? I took only a handful of shots before updating so I can't really check for sure. Of course, the sensible thing would be to have an option to disable all noise reduction but... it's Canon.

I wish there was an option to disable NR but it seems every camera manufacturer throws it in. I deleted hella footage shot at 3200. Its noticeable on handheld footage to me at least. Just hope my client doesn't notice it ?

Link to comment
Share on other sites

1 hour ago, kidzrevil said:

Yeah im in LA just for a gig but ill be back on the 17th. Haven't tried the digicon but I hear good things about em. The tiffen ultracons are great too!

I wish there was an option to disable NR but it seems every camera manufacturer throws it in. I deleted hella footage shot at 3200. Its noticeable on handheld footage to me at least. Just hope my client doesn't notice it ?

Gotcha. Are there any issues stacking a fader nd on top of a low con filter?

Link to comment
Share on other sites

On 10/11/2016 at 1:08 AM, hyalinejim said:

Yes, I see it and it's not pretty! I noticed it first in HD (after firmware update) and to a lesser extent in 4K. Switching between IS modes makes no difference but it does increase with ISO.

It makes HD footage unusable at 3200 if there's any movement of high contrast areas. The DV Info review points it out and theorises that the ghosting artifacts are due to an in-camera temporal noise reduction. The reviewer spotted it during a rolling shutter test:


Now that I've seen it in my own footage I can't unsee it! It seems to even be present, but very subtly, at 500. Whack up the ISO a bit, zoom in on a contrasty line and wiggle the camera a bit. You'll see it too ?

Now, I know the latest firmware "improved" high ISO performance in HD. But has it caused a worsening of ghosting? I took only a handful of shots before updating so I can't really check for sure. Of course, the sensible thing would be to have an option to disable all noise reduction but... it's Canon.

Thanks for letting me know about the DV Info review. In a bad sort of way it's good to know it's not just a problem with my unit. It hasn't destroyed any shots for me as it's fairly well hidden by motion when video is playing.

On 10/8/2016 at 4:53 PM, Amook said:

Here's a few clips in c-log Hd, as well as some 60p shots. I'm not a very good at color grading so I know it could be better. I had my daughter in a pack on my back of all these shots so the stabilization helped a lot.



A fine example of what this camera is great at. I must remember to use HD mode more!!

Link to comment
Share on other sites

52 minutes ago, Lintelfilm said:

 It hasn't destroyed any shots for me as it's fairly well hidden by motion when video is playing.

That's good to know. Doing a real world run and gun shoot tomorrow so will have a chance to delve in more detail into image quality. I bought the XC10 for easy hand held work so it would be a shame if ghosting compromised my ability to wave the camera around like a lunatic!

Link to comment
Share on other sites

I haven't seen it once, but I mostly shoot in HD on the wide end, but I exclusively use 5-Axis and I have whipped the camera around fairly fast. If I'm not mistaken I remember reading in the manual that ghosting can occur on the long end, but it seems you guys are noticing it even on the wide end? If it's ISO related, then I may never notice it because I rarely go higher than 500.

Link to comment
Share on other sites

I think it's quite likely that it's less noticeable on the wide end because there is generally less motion within the frame when shooting wide.

If you were to do a whip pan or have a speeding object move through the frame, you would see ghosting at 24mm.

Canon's spiel is BS. It's not IS related, it's not (directly) focal length related. It's a shitty temporal NR process which can't be switched off.

Link to comment
Share on other sites

17 minutes ago, hyalinejim said:

I think it's quite likely that it's less noticeable on the wide end because there is generally less motion within the frame when shooting wide.

If you were to do a whip pan or have a speeding object move through the frame, you would see ghosting at 24mm.

Canon's spiel is BS. It's not IS related, it's not (directly) focal length related. It's a shitty temporal NR process which can't be switched off.

I thought c-log didn't have any noise reduction?

4 hours ago, Claudio Cascioli said:

Hello everyone, I'm new on this forum, I just wanted to have some feedback from some  canon XC10 user. I used to test the camera with an external recorder NINJA ASSASSIN  and results were surprising. I hope to be able to exchange of views with someone who has had the same experience.

thank so much

Hello Claudio and welcome. It's always good to hear from another XC10 owner. I believe @Lintelfilm uses the Ninja Star with the XC10, but I am very interested in hearing about your results or seeing some footage of the pair.

Link to comment
Share on other sites

23 hours ago, Claudio Cascioli said:

Hello everyone, I'm new on this forum, I just wanted to have some feedback from some  canon XC10 user. I used to test the camera with an external recorder NINJA ASSASSIN  and results were surprising. I hope to be able to exchange of views with someone who has had the same experience.

thank so much

The XC10's HDMI output is done via 50i/60i (interlaced) so you have to set the Ninja to convert it back. It doesn't affect image quality. I believe Canon do this so that HDMI output works smoothly when connecting to TVs.

Link to comment
Share on other sites

23 minutes ago, hyalinejim said:

TOP TIP: When shooting C Log set screen backlight to high and drop brightness for a poor man's lut. This helps a bit in judging exposure.

Great tip, I'll give that a try... Thanks!

Also, are you exposing to the right with c-log... I have heard a bunch of conflicting methods.
