SIGMA FP with ProRes RAW and BRAW !


Trankilstef
 Share

Recommended Posts

45 minutes ago, OleB said:

Actually the result for ISO 100 and ISO 800 settings is exactly the same. False colors are not changing at all so if you expose as per that, all is identical. They first do so if you go one step higher than ISO 800. Only thing you have to consider in FCPX is that if you directly shoot in ISO 100 you can leave everything as it is, if you shoot in ISO 800 and want to bring back the picture, because in FCPX it will look blown of course (being as you said ISO 100 pushed 3 stops), you can either select manual ISO 100 or just dial down the highlights. By now I prefer the later way.

I decided to take the ISO 800 and upwards approach, because there the false colors are accurate and additionally the screen preview is at least workable.

Do you mean the exposure looks the same on the Ninja V screen? because I understand that 800 image is shot at ISO 100, but in my mind it's pushed +3 stops right? I guess I would understand if it was in front of me.

False color aside:

My observation about the clipping point of ISO 100 being around 3.5-5 is based on looking at the DNGs, so I was thinking that it would be applicable to the Ninja V recording too - but perhaps not, maybe that is (sadly) apples to oranges. Basically if I pushed an ISO 100 DNG by +3 stops to emulate what you're talking about with ISO 800, the highlights would clip much higher as I mentioned. But this is all theoretical until I have the camera.

Link to comment
Share on other sites

EOSHD Pro Color 5 for Sony cameras EOSHD Z LOG for Nikon CamerasEOSHD C-LOG and Film Profiles for All Canon DSLRs
1 minute ago, Owlgreen said:

It really wasn't. I've seen the words "ruin the color" multiple times on multiple forums in reference to using anything other than P3 D60 and a CST. If you didn't say those words then my comment didn't have anything to do with you.

Ok, thanks and I'm sorry for jumping to conclusions.

Basically my point with using the ACES input transform is that it will take into account the native sensor color space and embedded metadata to make a more informed colour transform, and that BMD Film is not important in that context. I think people see a linear image in Resolve and it looks blown out and they freak out, but that's because linear is not designed to be viewable. BMD Film is bringing an image into a viewable log range, but for example in ACES (and probably a managed Resolve workflow) you can place a non-destructive view transform on the viewer as a preview, and retain the full linear data.

Or transform to log, that's perfectly valid too. My issue with BMD FIlm Gen 1, is did BMD ever publish their log curve and colour gamut? I don't think they did. So in my mind it's better to use something like Alexa logC/AWG. If it's a technically accurate transform from linear toa known log curve with a white paper, and the linear input is a technically accurate transform from the raw, then the image integrity has been maintained and you know where you stand.

Link to comment
Share on other sites

20 minutes ago, Llaasseerr said:

Do you mean the exposure looks the same on the Ninja V screen? because I understand that 800 image is shot at ISO 100, but in my mind it's pushed +3 stops right? I guess I would understand if it was in front of me.

False color aside:

My observation about the clipping point of ISO 100 being around 3.5-5 is based on looking at the DNGs, so I was thinking that it would be applicable to the Ninja V recording too - but perhaps not, maybe that is (sadly) apples to oranges. Basically if I pushed an ISO 100 DNG by +3 stops to emulate what you're talking about with ISO 800, the highlights would clip much higher as I mentioned. But this is all theoretical until I have the camera.

If you ask me the best explanation would be that for true RAW, via Ninja V, the ISO values of the camera are incorrectly transferred/named. The best hint we have is that manual from Sigma. The real ISO values of both channels are 100 and 640. So it seems for the cine mode they have decided to name them differently.

So basically you have to dial in ISO 800 and get ISO 100 and so on, as in my table which I have mentioned way above. Comparing those "real" ISO values with an incident meter gives a match between false colors and the meter.

Do not ask my why they have done this...

Link to comment
Share on other sites

11 minutes ago, OleB said:

If you ask me the best explanation would be that for true RAW, via Ninja V, the ISO values of the camera are incorrectly transferred/named. The best hint we have is that manual from Sigma. The real ISO values of both channels are 100 and 640. So it seems for the cine mode they have decided to name them differently.

So basically you have to dial in ISO 800 and get ISO 100 and so on, as in my table which I have mentioned way above. Comparing those "real" ISO values with an incident meter gives a match between false colors and the meter.

Do not ask my why they have done this...

That makes some sense, thanks. I saw this dpreview post recently (possibly this is old info here, not sure) and I wasn't sure if it was just applicable to photo mode. I'm referring to the spreadsheet in the first post:

https://www.dpreview.com/forums/thread/4556012

I haven't cross checked it with what you posted before, but this seems like a legit source from Photons to Photos.

Link to comment
Share on other sites

13 minutes ago, Llaasseerr said:

That makes some sense, thanks. I saw this dpreview post recently (possibly this is old info here, not sure) and I wasn't sure if it was just applicable to photo mode. I'm referring to the spreadsheet in the first post:

https://www.dpreview.com/forums/thread/4556012

I haven't cross checked it with what you posted before, but this seems like a legit source from Photons to Photos.

I came to this because one year ago I was wondering why the false colors of the Ninja V are not working correctly above ISO 100. My expectation was that once you dial up the ISO (let us say in full steps) that the clipping should occur one stop earlier simultaneously. But I saw that false colors did not change at all until ISO 800 and only afterwards the behavior started which I was expecting.

Next thing I checked was if there is headroom (pulled the files in FCPX) over the clipping point when doing that, there is nearly none if you dial in the exposure to the border of clipping as per false colors. So far so good.

Then I built a lighting setup where I exposed for the practicals just so that they do not clip. Think that was on ISO 3200 setting in that first trial. I took my incident meter to dial in my key (of course setting that thing to ISO 3200) and guess what...key totally under. Confusion started and I was wondering if I am too stupid to understand the camera somewhat. Should at that stage better used the false colors to check skin color...

But instead giving up I was investigating further and in the end figured out what in the end led to the conversion table. Now I can use my incident meter again for setting the lights, contrast rations etc. and last but not least, the false color screen is now confirming that I am ending in the correct exposure range doing so.

Link to comment
Share on other sites


Sigma FP Color Mode "ON" Portrait, Standard, etc - UHD DNG - WB - Daylight


Sigma FP Color Mode "OFF" Portrait, Standard, etc - UHD DNG - WB - Daylight

It's a shift that could be meaningful for some, the violet spray bottle on the left side of the image stays true with color mode set to anything but 'off.'  The reds also get orange and the greens go a little brown.  It's not just less saturated, I don't know, it seems shifted.

Then 'ON' and 'OFF' will match BMD color and gamma.  Where you will see both or a difference is in ACES or DaVinci Color Managed.

It's a strange behavior, that's why I think they went in reverse from BMD film to the color mode "off" which I think was added later.

Link to comment
Share on other sites

15 minutes ago, Ryan Earl said:


Sigma FP Color Mode "ON" Portrait, Standard, etc - UHD DNG - WB - Daylight


Sigma FP Color Mode "OFF" Portrait, Standard, etc - UHD DNG - WB - Daylight

It's a shift that could be meaningful for some, the violet spray bottle on the left side of the image stays true with color mode set to anything but 'off.'  The reds also get orange and the greens go a little brown.  It's not just less saturated, I don't know, it seems shifted.

Then OFF will match BMD color and gamma.  Where you will see both or a difference is in ACES or DaVinci Color Managed.  They will look as they do in 'off' if developed through in BMD Film regardless if 'off' was set in a DaVinci YRGB project where you can decode to it.

It's a strange behavior, that's why I think they went in reverse from BMD film to the color mode "off" which I think was added later.

Thanks for showing that shift, it looks like a gamut mismatch. I mean, it seems best to rely on the "none" mode.

Re: transforming to BMD/BMD Film in the RAW tab, actually it's so long since I looked at it and I see it's not even a log curve any more. It seems to be putting the image into a display space immediately, which is not the result I would expect.





Link to comment
Share on other sites

38 minutes ago, OleB said:

I came to this because one year ago I was wondering why the false colors of the Ninja V are not working correctly above ISO 100. My expectation was that once you dial up the ISO (let us say in full steps) that the clipping should occur one stop earlier simultaneously. But I saw that false colors did not change at all until ISO 800 and only afterwards the behavior started which I was expecting.

Next thing I checked was if there is headroom (pulled the files in FCPX) over the clipping point when doing that, there is nearly none if you dial in the exposure to the border of clipping as per false colors. So far so good.

Then I built a lighting setup where I exposed for the practicals just so that they do not clip. Think that was on ISO 3200 setting in that first trial. I took my incident meter to dial in my key (of course setting that thing to ISO 3200) and guess what...key totally under. Confusion started and I was wondering if I am too stupid to understand the camera somewhat. Should at that stage better used the false colors to check skin color...

But instead giving up I was investigating further and in the end figured out what in the end led to the conversion table. Now I can use my incident meter again for setting the lights, contrast rations etc. and last but not least, the false color screen is now confirming that I am ending in the correct exposure range doing so.

Okay, that is really weird. So visually, as you dialed up the ISO the image got +1 stop brighter on the Ninja V but the false color was still monitoring the underlying base ISO?

In my mind, as you increase ISO you increase the highlight clipping point and simultaneously get noisier shadows, assuming ISO invariance. The test you sent me bears that out, but the max highlight value did not increase at a full stop per ISO increase - so that seemed strange.

But it's great that you got that consistency and repeatability now, by doing tests with your light meter to sanity check. I will need to come back and read your posts if/when I get the camera so I can fully appreciate it. I mentioned that my existing method for sanity checking has involved a basic light meter reading to set a general exposure for middle grey, and verifying with my grey card that it hits 0.18 when developed to a linear image. And also ideally that the green of the false color hits the grey card when monitoring.

Link to comment
Share on other sites

4 minutes ago, Llaasseerr said:

Thanks for showing that shift, it looks like a gamut mismatch. I mean, it seems best to rely on the "none" mode.

It's confusing, I might have written it out in a confusing way, but I don't think the "off" mode or decoding to BMD color and gamma are as accurate, so personally I'm not using them.

I set the profile in the camera to "Portrait" then record in 12 Bit DNG then use DaVinci Color Managed because I'm often using it for reproducing objects that require accurate color.

I would consider the "off" mode to be a shifted 'cinema' mode like a Kodak film stock, where green isn't green, it's a little brownish green.  It could be better for skin tones for example and pleasing, but I don't see it as 'accurate.'

Link to comment
Share on other sites

18 minutes ago, Ryan Earl said:

It's confusing, I might have written it out in a confusing way, but I don't think the "off" mode or decoding to BMD color and gamma are as accurate, so personally I'm not using them.

I set the profile in the camera to "Portrait" then record in 12 Bit DNG then use DaVinci Color Managed because I'm often using it for reproducing objects that require accurate color.

I would consider the "off" mode to be a shifted 'cinema' mode like a Kodak film stock, where green isn't green, it's a little brownish green.  It could be better for skin tones for example and pleasing, but I don't see it as 'accurate.'

Interesting, because Sigma touted "off" mode as the closest profile to the raw DNGs, but maybe you're on to something. I'll admit I'm set in my ways with developing DNGs via ACES and I find DaVinci Color Managed unintuitive and confusing. But I'm used to using ACES on commercial projects and using it with Nuke plus other tools. For a whole film color pipeline, no-one uses DaVinci Color Managed, but for projects contained in Resolve I see how it could be valid.

Can you upload these images and I can put them through ACES and post them here?

Link to comment
Share on other sites

30 minutes ago, Llaasseerr said:

Okay, that is really weird. So visually, as you dialed up the ISO the image got +1 stop brighter on the Ninja V but the false color was still monitoring the underlying base ISO?

Exactly this! When you are increasing ISO from 100 upwards (no matter what monitor mode you use, even Rec709) the preview picture increases exposure, but the false colors remain the same until ISO 800, only from that you see a change in the clipping point and the exposure of the preview. 😄

Link to comment
Share on other sites

9 minutes ago, OleB said:

Exactly this! When you are increasing ISO from 100 upwards (no matter what monitor mode you use, even Rec709) the preview picture increases exposure, but the false colors remain the same until ISO 800, only from that you see a change in the clipping point and the exposure of the preview. 😄

Okay, you probably stated this already that if it measures the value directly off the sensor then it's not factoring in the ISO push. I guess what is needed is for the false color to work in a CineEI mode where it reflects the preview. Like CineEI on Sony pro cams, it's just the base ISO but the preview can show an adjusted ISO value that is just written as metadata and reflects what you would do in post.

It could be done predictably with a false color LUT, probably. Since that would be applied after the preview picture exposure change.

Link to comment
Share on other sites

1 hour ago, Ryan Earl said:

Sure, here is a link to 2 DNG Frames.  Let me know what you think.  Anybody can download until the link expires.

https://we.tl/t-uRbyLstW0Y

I think you're on to something with this. I think "ON" is better. I think the "OFF" image is displaying a native wide gamut image in "Sigma gamut" and we don't know what the transform is. It doesn't seem like it's accounted for in the DNG metadata when in "OFF" mode.

Having said that, the ACES "OFF" version looks to me like the mov "OFF" version that I've seen before (in the toy Ferrari images) with the desaturated color space. So in that sense it's consistent? But not what we wold want.

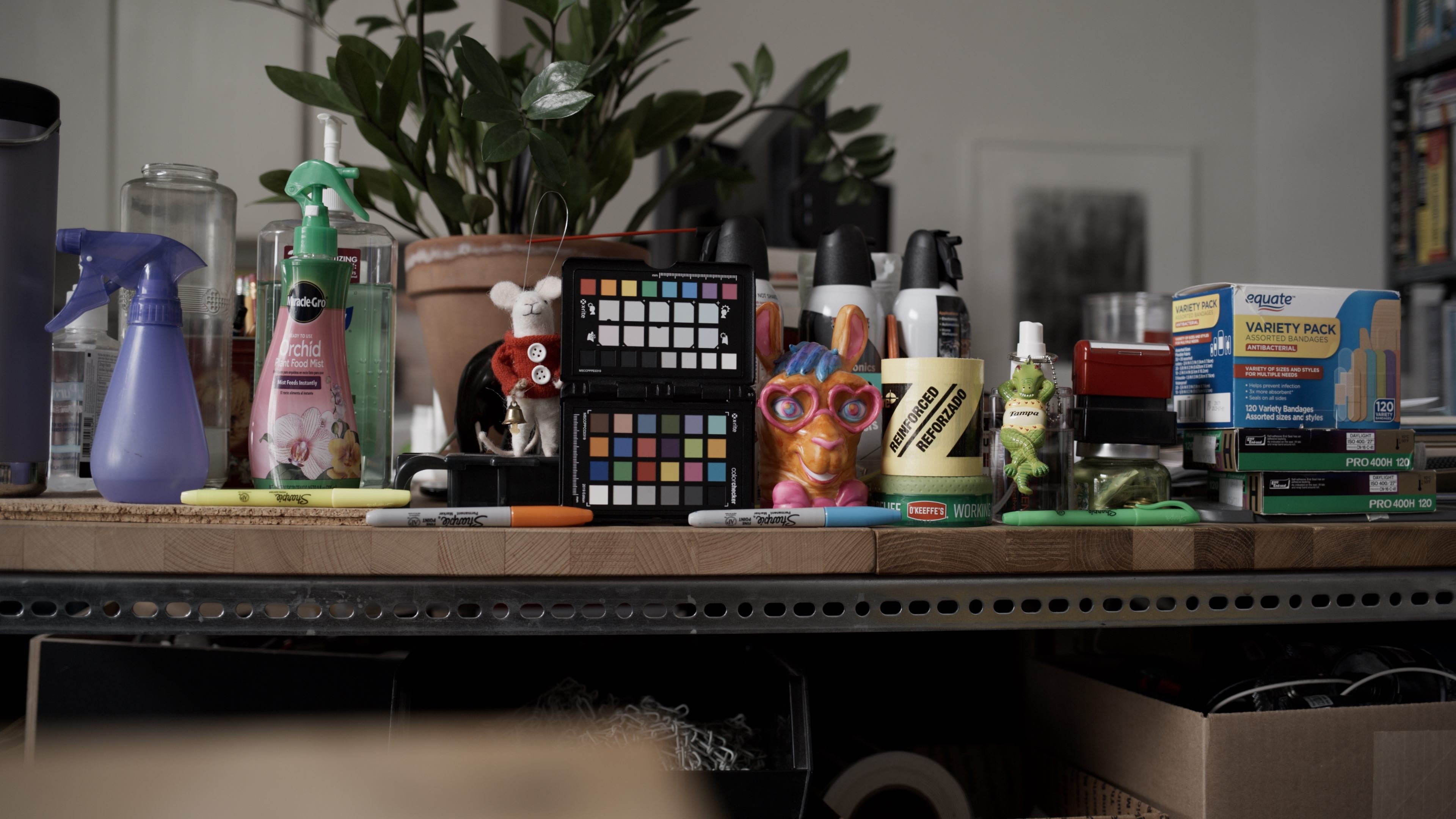

Here are the two images exported as srgb with the default ACES look and output transform. The "ON" version is very close to your "ON" version. There is an issue where the look transform at the end is flattening the highlight detail on the piglet doll's face, but when the file is viewed in linear space, the detail is there. So that could be fixed.









OFF


ON


Link to comment
Share on other sites

So my first impressions were instant regret. I took some video to find terrible banding in the deep shadows. After updating to the current firmware and playing around a bit more I think I am satisfied. You definitely got to follow an image workflow.

@Ryan Earl suggestion seems to work well.
Set the RAW to the P3 D60 colorspace and gamma to linear than apply the color space transform and set the output to REC709 and gamma 2.4. Adjust the max input on tone mapping to 1000 and you are set.

Setting it to the blackmagic colorspace is a bit quicker to do and looks pretty good. But the colors are vastly different and it doesn't retain information quite as well. Might be good for matching to other BM cameras though.

What I have found is that the shadows fall apart way quicker in both 10 bit and 8 bit RAW. 12 bit seems the way to go. To be fair I was pushing the shadows really hard.

Overall the image is nice and organic. I think I am sold. I really hope sigma can fix the monitoring for 3200 iso, would really make it quite the camera.

Its no Arri Alexa but there is something nice about CDNG. I wish Premiere supported DNG better.

Link to comment
Share on other sites

57 minutes ago, TomTheDP said:

So my first impressions were instant regret. I took some video to find terrible banding in the deep shadows. After updating to the current firmware and playing around a bit more I think I am satisfied. You definitely got to follow an image workflow.

@Ryan Earl suggestion seems to work well.
Set the RAW to the P3 D60 colorspace and gamma to linear than apply the color space transform and set the output to REC709 and gamma 2.4. Adjust the max input on tone mapping to 1000 and you are set.

Setting it to the blackmagic colorspace is a bit quicker to do and looks pretty good. But the colors are vastly different and it doesn't retain information quite as well. Might be good for matching to other BM cameras though.

What I have found is that the shadows fall apart way quicker in both 10 bit and 8 bit RAW. 12 bit seems the way to go. To be fair I was pushing the shadows really hard.

Overall the image is nice and organic. I think I am sold. I really hope sigma can fix the monitoring for 3200 iso, would really make it quite the camera.

Its no Arri Alexa but there is something nice about CDNG. I wish Premiere supported DNG better.

Setting the RAW to Linear/P3D60 and setting the output transform to Rec709/gamma 2.4 is very close to what ACES is doing when viewing/rendering for a Rec709 intent.

The main difference with the underlying linear images is that the ACES gamut is larger than P3. I've attached two screengrabs of the linear image stopped down by -1 stop to see the highlight detail and it looks the same. The P3D60 is the more saturated one. The ACES one looks less saturated without the native gamut transformed to the output device.

One thing I've noticed in the "linearP3D60 to Rec709" version vs the "ACES linear to Rec709 ODT" version is that the highlights appear to be clipping because the CST does not provide any highlight rolloff except the tone mapping, which is not quite getting the highest values - whereas the ACES rrt/odt includes an aggressive highlight rolloff.

A non-ACES method that preserves the highlights would be to CST transform to Alexa logC/AWG and disable tone mapping, then apply the Alexa 709 LUT.

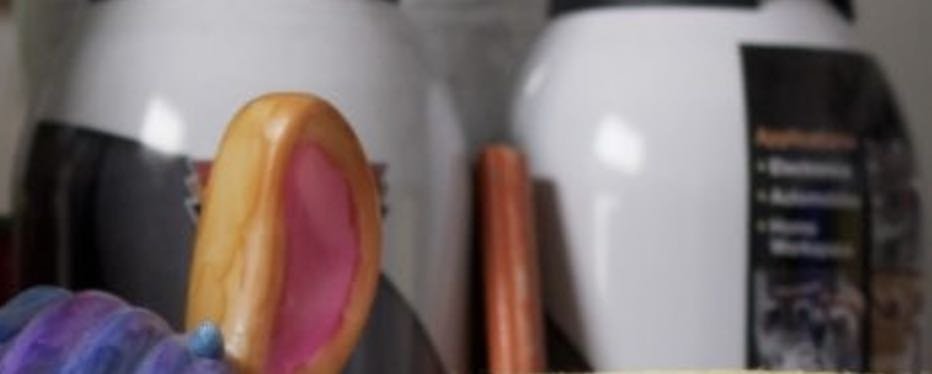

ACES rrt/odt highlight rolloffaces_highlights_r709odt.jpg

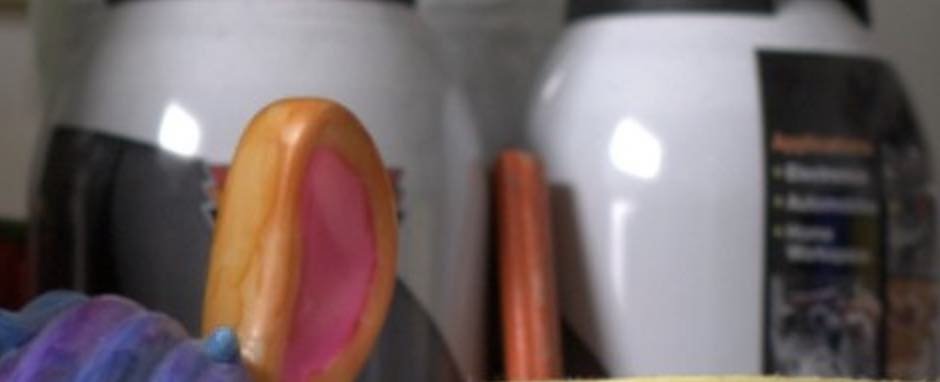

CST tone map

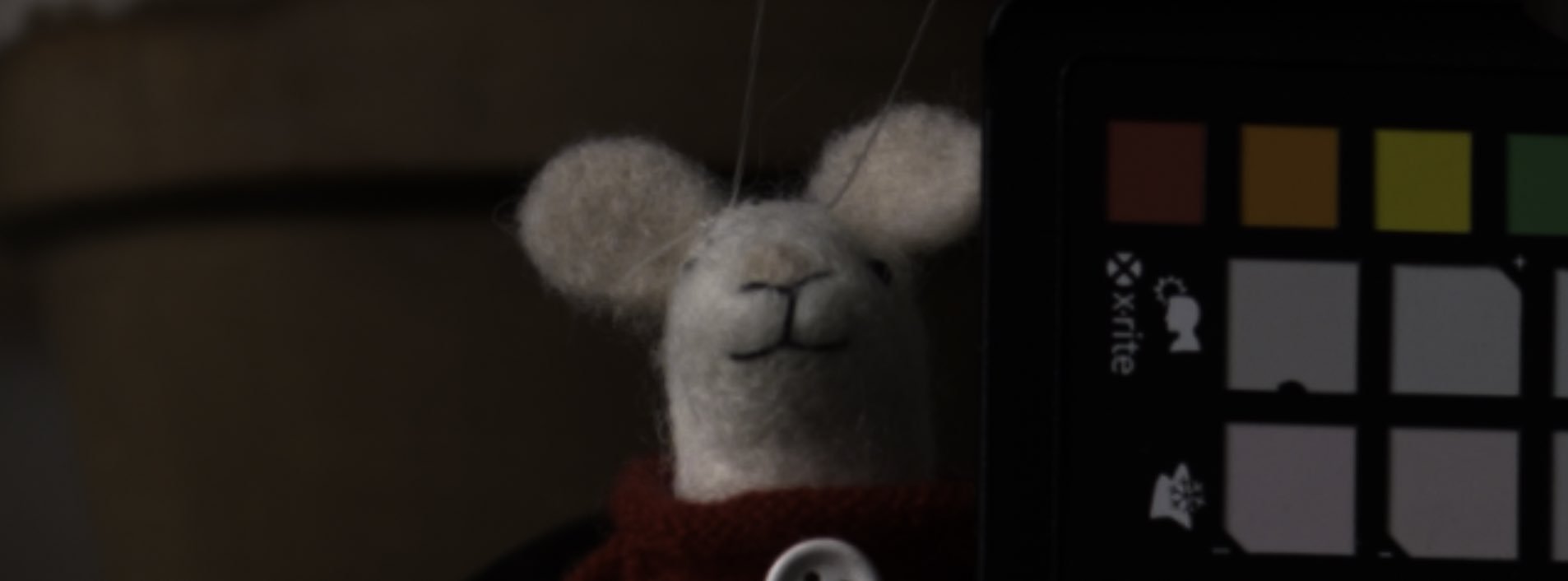

ACES linear -1 stop (for visualisation only)linearACES.jpg

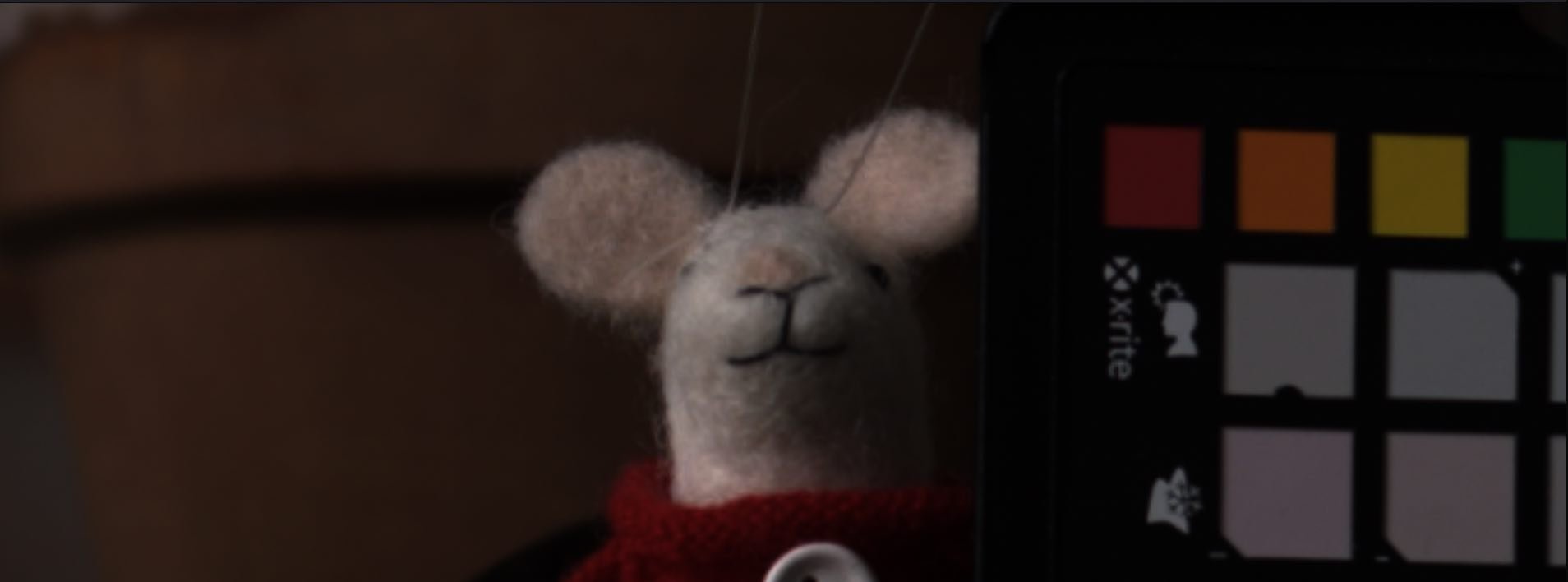

P3D60 linear -1 stop (for visualisation only)


Link to comment
Share on other sites

The methods are quite similar, but ACES is probably more simple to manage if its used in its own project. If I was going to output to Alexa log, I would also start in ACES to get there. It does manage things like the gamut and the highlights more seamlessly.

I've been looking at the CIE chromaticity chart a lot more to check what the gamut is doing between operations. It's useful in unmanaged projects especially, to check there's no clipping to a smaller gamut like Rec709 before final output.



Link to comment
Share on other sites

8 hours ago, Ryan Earl said:

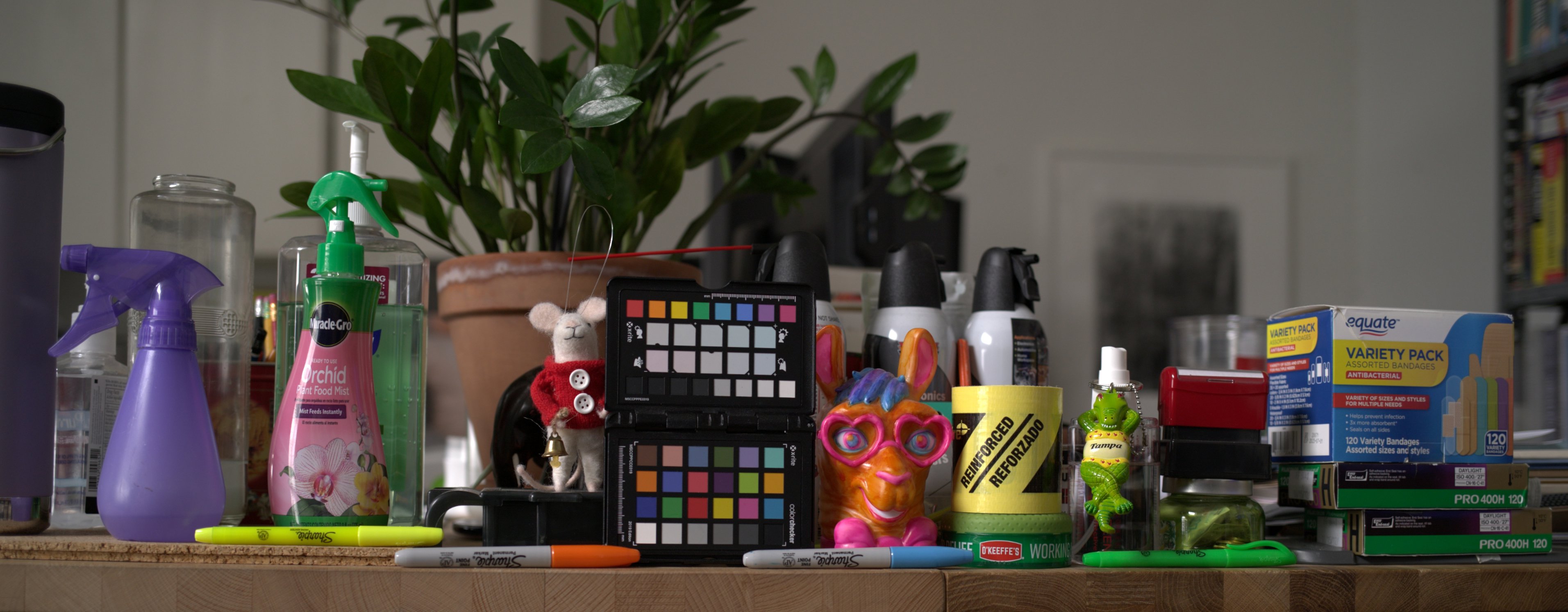

Sigma FP Color Mode "ON" Portrait, Standard, etc - UHD DNG - WB - Daylight

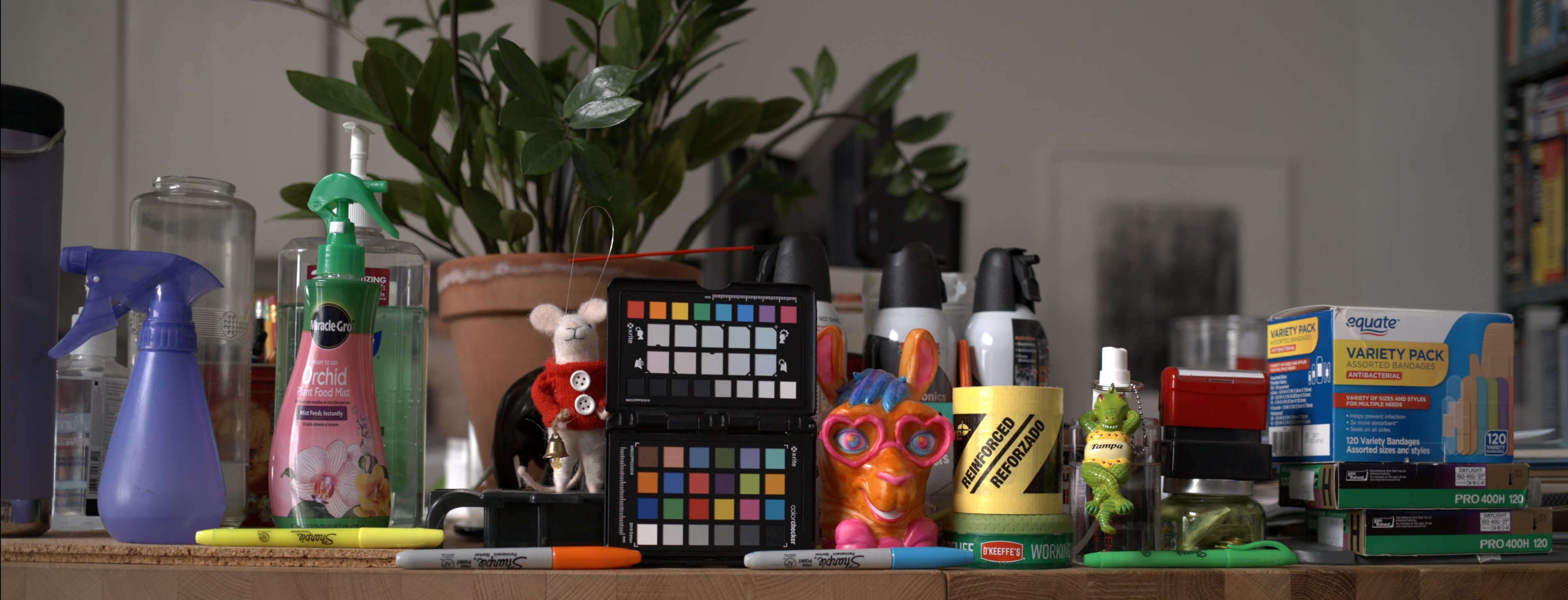

Sigma FP Color Mode "OFF" Portrait, Standard, etc - UHD DNG - WB - Daylight
