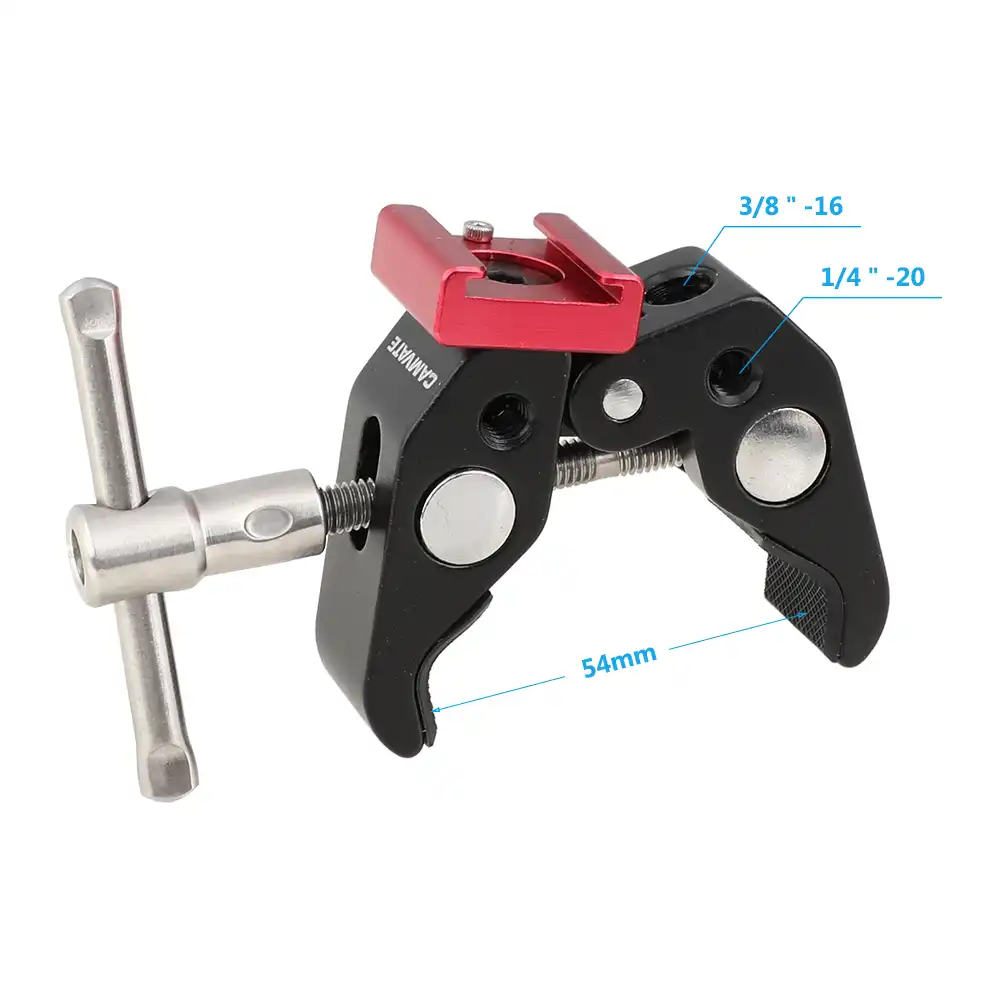

Lightweight but sturdy super clamp?


kye

Recommended Posts

I'm now thinking about travelling again (but not doing it yet!!) and am looking for recommendations for a camera clamp for a balcony handrail.

The context is that I often shoot time lapses from balconies and want something that can clamp a full-size camera and lens combo securely to the balcony.  Some of them have a handrail, but others are just a piece of toughened glass that isn't capped off with anything.

Here's some random shots of various balcony hand-rail setups..


balcony_2310739a.jpg?impolicy=logo-overl

1561412062-1-hotel-brooklyn-bridge-new-y

Ideally, I'd like it to:

  • be able to clamp on just glass, or a thicker handrail
  • have the camera mount on one side of the clamp so I can put the camera on the balcony side of the railing so if the clamp fails the camera falls into the balcony and not over the edge
  • be lightweight as I'll be travelling with it, although size isn't as much of a concern so sturdy plastic would be fine I think

I've carried gorilla pods before, but I've realised that I don't end up using them except for this, and they're big and heavy and not actually that sturdy for clamping to anything, especially as I'd like to be able to leave them unattended, even in a decent breeze, and not be afraid they're going to fall.

Does anyone have any recommendations?

Link to post
Share on other sites
1 hour ago, kye said:

This looks like a good option as it looks like it can clamp on flat and round things, but it's 1.2kg / 2.7lb !!!

Kupo_KG500511_Large_Gaffer_Grip_13276615

https://www.bhphotovideo.com/c/product/840831-REG/Kupo_KG500511_Large_Gaffer_Grip.html/specs





Call me paranoid but in your situation I'd rather just take a travel tripod. I just can't imagine trusting my camera setup to something like a clamp. Induro, Manfrotto, and other brands like that make some great travel tripods that are very light and collapse using 4 joints instead of the usual 3 so they get really small. What I do is put the two front legs against the balcony, extend the third leg until the tripod is fully braced against the balcony, then I typically hang my camera bag or some kind of weight to a hook at the bottom of the tripod center pole.  I've shot quite a few time lapses like that and the nice thing is, I can also use the tripod for other things too like long exposures. Of course lugging around a tripod can take the fun out of any vacation, but travel tripods in my opinion are a reasonable compromise.

Link to post
Share on other sites
4 hours ago, herein2020 said:

Call me paranoid but in your situation I'd rather just take a travel tripod. I just can't imagine trusting my camera setup to something like a clamp. Induro, Manfrotto, and other brands like that make some great travel tripods that are very light and collapse using 4 joints instead of the usual 3 so they get really small. What I do is put the two front legs against the balcony, extend the third leg until the tripod is fully braced against the balcony, then I typically hang my camera bag or some kind of weight to a hook at the bottom of the tripod center pole.  I've shot quite a few time lapses like that and the nice thing is, I can also use the tripod for other things too like long exposures. Of course lugging around a tripod can take the fun out of any vacation, but travel tripods in my opinion are a reasonable compromise.

You're paranoid!

Not sure why you requested that, but anyway, moving on...  😆😆😆

Ideally I'll have two, one for my action camera and one for my second camera (likely a GH3), so spending $100 each for tripods that weigh ~1kg each doesn't really make sense, especially considering that I wouldn't use them for anything else.  I've taken a tripod on long trips and never used it, and taken a large Gorillapod and only used it for time lapses mounted to a balcony rail, so this is literally the only thing I need anything for.

1 hour ago, TheRenaissanceMan said:

Standard mafer/cardellini clamps not doing it for you?

Thanks, half the battle is knowing the right terminology.  However, it does look like neither is a good fit.

The problems with the Mafer style is that they don't seem to open very wide, with the max I could find being 2" which is probably fine for rigging etc but is on the smaller side for handrails, so I'd be running the risk of it just not being large enough if I got a larger handrail.

The Cardellini look to solve this issue, and the vise-clamping motion seems to be perfect, but I'm not that sure the geometry quite works.

If I oriented it like the below then that would work for free-floating handrails but wouldn't work for handrails capping a glass sheet, which are very common.

Ie, I can't attach the clamp upright like this:

impact_me_106_6_end_jaw_vise_1544010634_

on balconies that are a rail on top of a sheet of glass like this:

balcony_2310739a.jpg?impolicy=logo-overl

In that situation I could clamp it so the threaded rod is horizontal, but then I'd have trouble attaching the tripod mount on the end.

This clamp has the right geometry, but it's special order from B&H and the price is getting a little high at USD$54 each.

Dedolight_CLAMP1_Light_Clamp_1346667526_

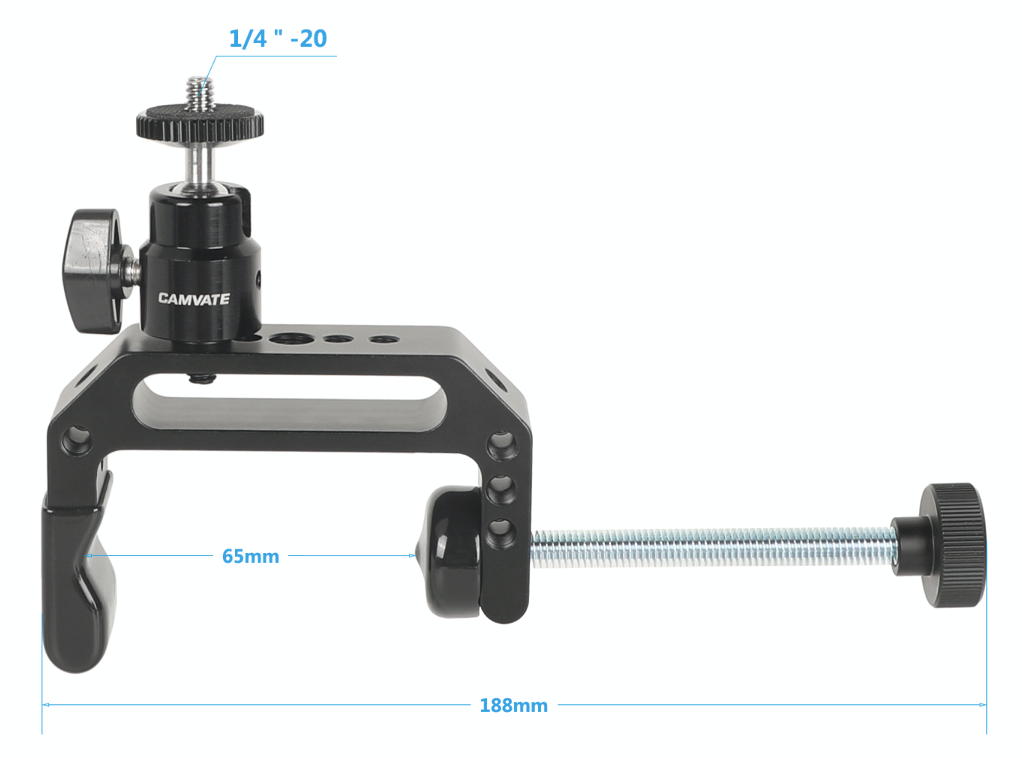

This could really be achieved with a cheap hardware store clamp with an angle bracket welded to it.  I think my late father-in-law had a welder gathering dust in the shed, so maybe I should fire it up and with a few dollars of parts and the worst welding job in the world I'd have something suitable.  I was just thinking there would be a $7 high-impact plastic clamp on eBay that someone knew about.



Link to post
Share on other sites

@kye I'd suggest investing in some industry standard grip equipment.

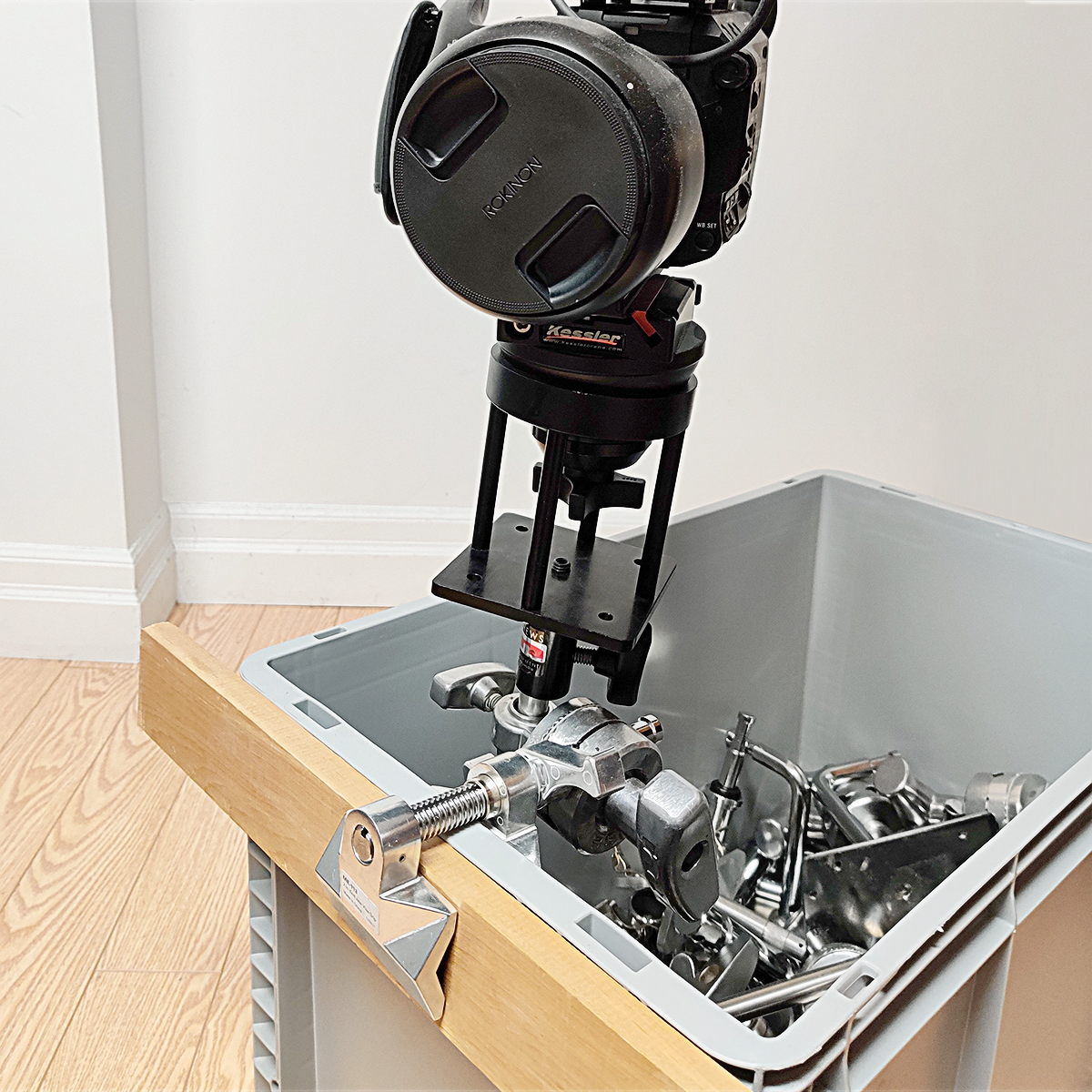

As an example I put an overload loaded FS5MII (~10 lb) on single cardellini clamp. Wood adds rigidity and makes surface even, improving the clamping force.
