@jcs

While the systems you identify function more-or-less as you claim and most of what you’re writing is correct, you’re making a few mistakes, most significantly dividing by two an extra time.

Rather than dissect every aspect of your arguments in this thread, I’ll focus only on a few points that are problematic and we can go from there. IMO, Alister Chapman’s images are bad and misleading examples anyway so I won't address that post in as much detail as your post before it.

I struggle to be concise, but I’ll try. For now, let’s stay focused on monochrome sensors without AA filters because Bayer interpolation just confuses things. You state:

Maximum capture resolution possible for a monochrome sensor is W x H pixels, or W/2 x H/2 line pairs in terms of frequency

Maximum possible capture resolution for (1) without aliasing is : (W/2)/2 x (H/2)/2 line pairs in terms of frequency or W/2 x H/2 in terms of pixels

Where did the second dividend come from in part 2? Not from Nyquist. You already applied Nyquist in converting pixels to line pairs. What is correct is simpler and needs no part 2:

Maximum capture resolution possible without aliasing for a monochrome sensor is <W x H lines or <W/2 x H/2 line pairs (assuming sinusoidal cycles in the input frequency)

Or, basically just the Nyquist theorem.

Alister Chapman’s first image is misleading. I suppose if you could map each pixel individually and perfectly that is about what would happen. But the chance of those patterns being mapped exactly to one another is infinitely low (not to mention I think he’s wrong in terms of how a Bayer sensor would read that input based on how deBayering algorithms work, but that’s an unrelated tangent and why we’re focusing on monochrome sensors for now). Both of his example images are based on a vanishingly low improbability. >99.9999999999% of the time at a square wave input frequency equal to the frequency of the sensor you’ll just get crazy aliasing, as you correctly state. Not that a true square wave could even hit the sensor once passed through a lens. So we see here only the exceptions which prove the rule and which are only tangentially related to the actual rule, which concerns sine waves and not square waves (except to the extent that square waves contain infinite order harmonics of sine waves).

So let’s entirely forget Chapman’s confusing examples for now and start with more useful ones. Let’s map <N sine waves onto N pixels. (There are some caveats to the examples I’m posting but we can discuss those later.)

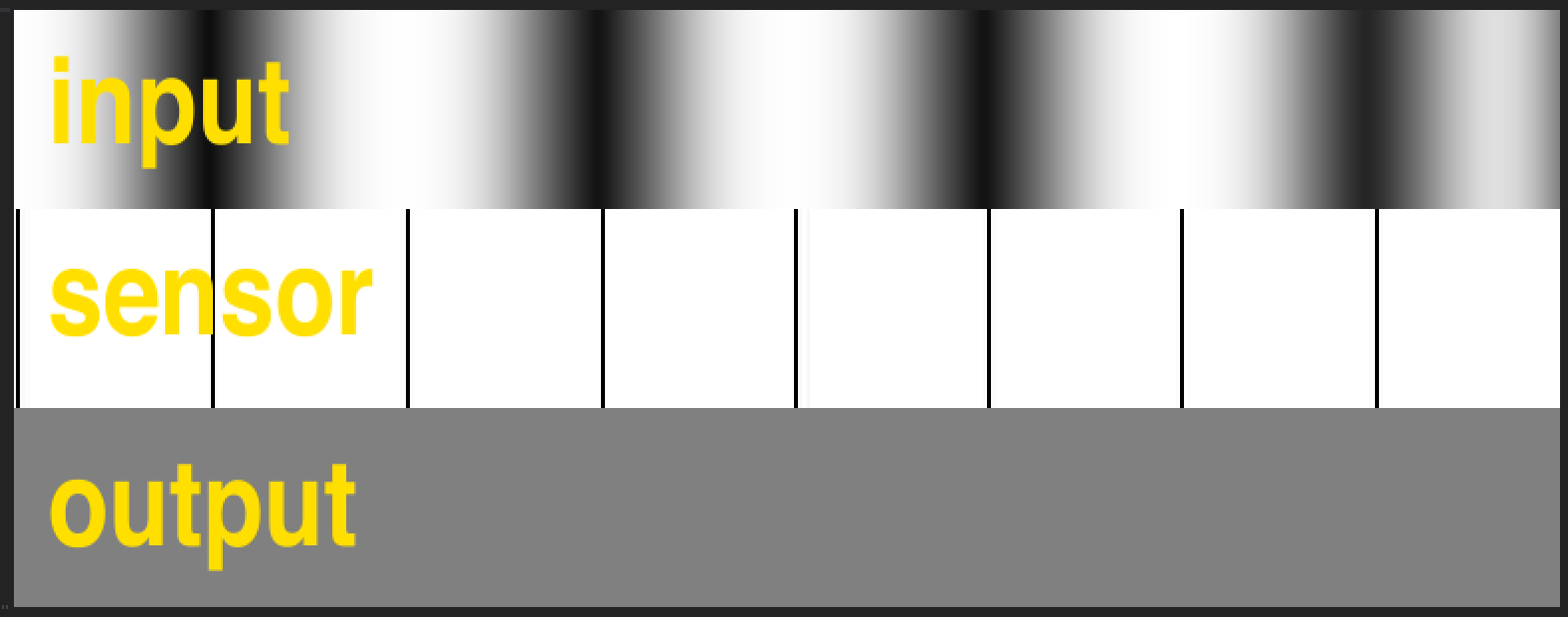

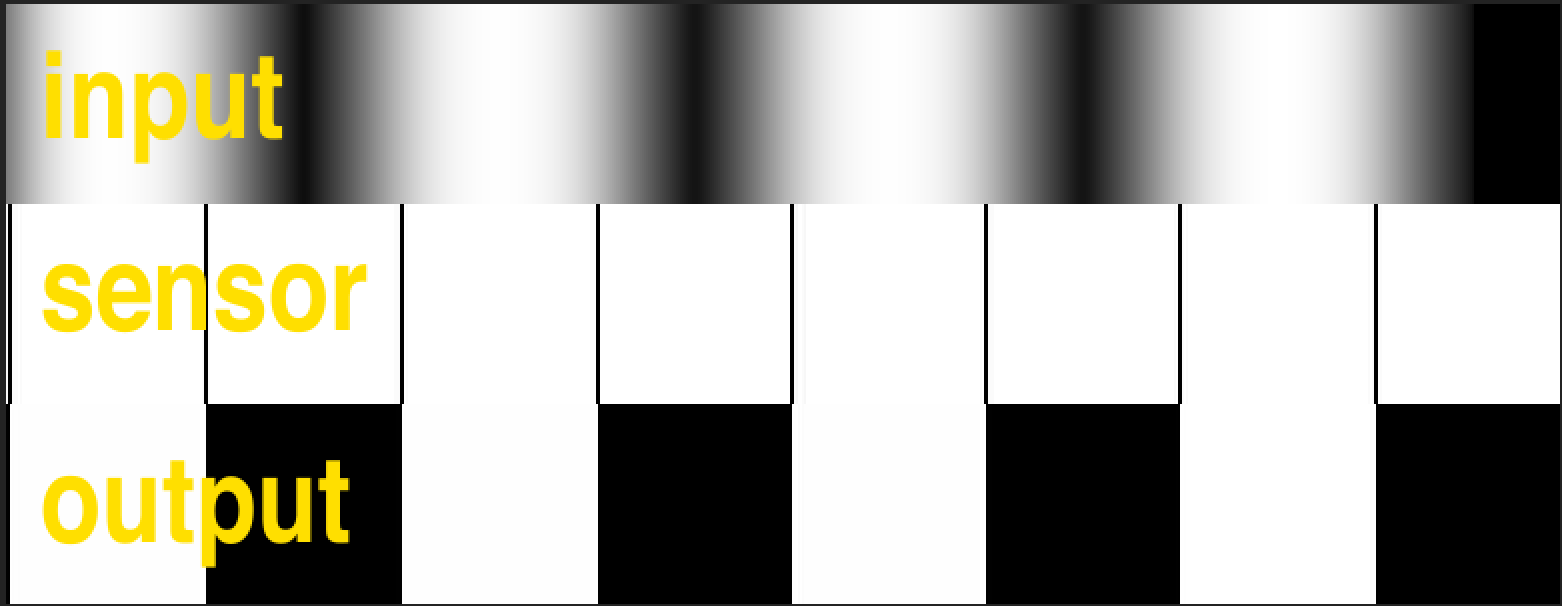

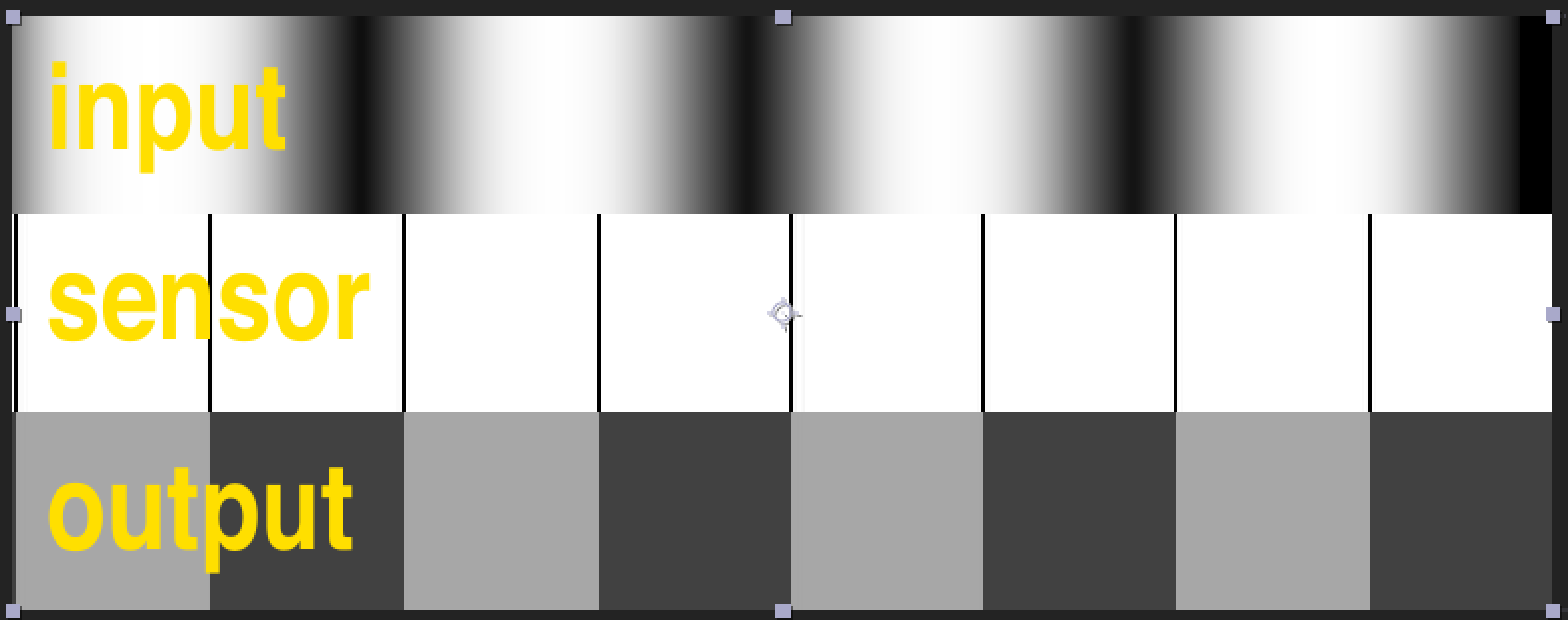

What we can see here is that when the frequency of the sensor and signal are aligned, we can resolve <2N lines with high contrast. When they’re offset exactly by 1/2 we can see that the signal approaches gray (it would be pure gray if exactly offset and if we had N pixels but for this example we’re talking <N and N needn’t be an integer so instead it’s infinitely close to gray). And when the grid is offset by an arbitrary amount we get…. a lower contrast image. Not aliasing!

Screen Shot 2017-08-05 at 2.45.52 PM.png

Screen Shot 2017-08-05 at 2.45.47 PM.png

Screen Shot 2017-08-05 at 2.45.57 PM.png

Nyquist holds true. We don't need to divide by two again to get rid of aliasing! We just need to think in terms of sine waves rather than square waves in the input domain.

Let’s reexamine your claims:

    1    Maximum capture resolution possible for a monochrome sensor is W x H pixels, or W/2 x H/2 line pairs in terms of frequency

Part 1 is basically true, excepting a lack of a < symbol and some semantics relating to pixels and line pairs not quite being the same thing

 2 Maximum possible capture resolution for (1) without aliasing is : (W/2)/2 x (H/2)/2 line pairs in terms of frequency or W/2 x H/2 in terms of pixels

Part 2 contains an extra dividend. It should read:

Maximum possible capture resolution for (1) without aliasing is : <(W/2)x (H/2) sinusoidal line pairs in terms of frequency or <W x H in terms of pixels. Those sampled pixels may approach but will not reach zero contrast (in theory, not practice).

The reason there’s so much confusion is because most resolution charts and most zone plates are printed in square waves, which have infinite higher order harmonics. I would also contend that oversampling by a factor of two guarantees a preservation of contrast that not only guarantees no aliasing but guarantees that no signal is reduced to approaching gray (taking gray as zero) and every signal is allowed to reach its full amplitude. But that is separate from Nyquist, and I'm not even sure oversampling (itself a Nyquist-bound process) preserves that detail anyway.

What’s really crazy to consider is that a high resolution sensor is still prone to alias when shooting a single high contrast edge no matter the frequency of the fundamental pattern. It just usually doesn’t show up much.

Furthermore, the < is a bit of a silly bugaboo because even without the < you won't get aliasing. You just also won't get a recoverable signal because it will be reduced to gray (zero) when misaligned perfectly with the grid. But since there's noise in any sensor and quantization isn't infinitely sensitive anyway, the <'s presence is very arbitrary in practice and the exact limit of recoverable resolution is even less than Nyquist predicts, promoting the practice of oversampling

Anyhow, you're dividing by two an extra time and using square waves and sine waves interchangeably even though square waves are of infinite frequency regardless of their fundamental and sine waves are of their fundamental frequency and no higher.

Share this post


Link to post
Share on other sites
11 hours ago, gelaxstudio said:

Why Iphone7 is missing too?

Lack of wide gamut BFA and 10 bit high bitrate codec, for one. I'm sure they'd let you shoot the occasional insert on an iPhone, though, and would purchase an iPhone-derived project as an original on its other merits. They just likely wouldn't finance and produce one. So I wouldn't sweat it until you're in a position to discuss it with them personally.

Share this post


Link to post
Share on other sites
15 hours ago, HockeyFan12 said:

Lack of wide gamut BFA and 10 bit high bitrate codec, for one. I'm sure they'd let you shoot the occasional insert on an iPhone, though, and would purchase an iPhone-derived project as an original on its other merits. They just likely wouldn't finance and produce one. So I wouldn't sweat it until you're in a position to discuss it with them personally.

Uh...actually that was a joke~:flushed:

It is just a phone!



Share this post


Link to post
Share on other sites

@HockeyFan12,

  1.  Maximum capture resolution possible for a monochrome sensor is W x H pixels, or W/2 x H/2 line pairs in terms of frequency
  2.  Maximum possible capture resolution for (1) without aliasing is : (W/2)/2 x (H/2)/2 line pairs in terms of frequency or W/2 x H/2 in terms of pixels

(1) is maximum resolution with aliasing, (2) is maximum resolution without aliasing, and thus we must perform the extra divide by 2 as per Nyquist. Without the extra divide by 2, (2) is the same as (1). Since most OLPFs and camera systems allow a small amount of aliasing, I stopped using > to simplify the statement. Nyquist is >2x if we want zero aliasing (vs. = 2x as written above to simplify for camera systems which allow for a slight amount of aliasing).

If one argues that (1) & (2) above are invalid, they are stating that Nyquist sampling theory is invalid.

We don't need to complicate the statement with fundamentals and harmonics, especially with a sine wave. What are the harmonics of a pure sine wave beyond the fundamental? ;)

Nyquist applies also to the purely digital domain, and is used in computer graphics and video games to reduce or eliminate aliasing: http://cs.boisestate.edu/~alark/cs464/lectures/AntiAliasing.pdf

Share this post


Link to post
Share on other sites

I've already explained myself, I'm not going to explain further if it doesn't add up. I had this explained to me by a sensor engineer at one of the leading cinema camera manufacturers, so while I may be using layman's terms incorrectly I'm sure the theory behind it is right and the illustrations I offer prove it fairly simply. Maybe what I'm expressing isn't clear. But I used to think what you argue and a lead engineer at a camera manufacturer corrected me. I don't want to refer to others' explanations so that people take things on faith, but I already explained how it works just maybe not as well as he can. If you want I can refer you to his explanation via PM.

Long story short, you're still dividing by two twice, once unnecessarily.

Of course there are no harmonics of a pure sine wave beyond the fundamental, by definition. But Chapman's images show square waves, which do have higher order harmonics. And so what I contend is that if you take Alistair Chapman's images (his explanation is wrong btw) but swap sine waves for the square waves he places in the input domain, you'll find that any frequency equal or less than 2k line pairs (4k lines) doesn't alias and any frequency less than 2k line pairs (less than 4k lines) not only doesn't alias, but leaves a recoverable trace, however low contrast. Yes, the contrast of the recorded pattern varies based on alignment with the sensor, but no false detail is generated.

I'm quoting the first website I find:

Nyquist rate -- For lossless digitization, the sampling rate should be at least twice the maximum frequency responses. Indeed many times more the better.

You'd agree that fits the definition of Nyquist? So let's say we have 2k sinusoidal line pairs, cycling between black and white, and want the minimum resolution sensor we need to record them without aliasing. A sine wave hits zero (gray) twice per cycle, and 1 (black) once and -1 (white) once per cycle. So that's one black and one white (really they'll show up as shades of gray) line per cycle. So if a 4k sensor can resolve up to 2k line pairs without aliasing, it can resolve up to 4k lines. Nyquist basically does nothing more than convert lines to line pairs. Yes, you still need a low pass filter. And yes, misaligned exactly by 1/2 and sampled at the same frequency as the input, the image will resolve as gray, as Chapman illustrates. But that's where the < comes from. If it's < that number, then there will always at least be a trace in the recording, however faint, from which to recover the signal's frequency.

So yes, let's think in sine waves and monochrome sensors exclusively. Refer to the images I posted above. You don't need the second dividend, as I illustrate, under those circumstances.

Maximum possible capture resolution for without aliasing is : (W/2) x (H/2) line pairs in terms of frequency or W x H in terms of pixels (although those pixels may be shades of gray, and almost certainly won't be black and white lines unless there's a lot of false detail or sharpening)

Share this post


Link to post
Share on other sites
1 hour ago, HockeyFan12 said:

Maximum possible capture resolution for without aliasing is : (W/2) x (H/2) line pairs in terms of frequency or W x H in terms of pixels (although those pixels may be shades of gray, and almost certainly won't be black and white lines unless there's a lot of false detail or sharpening)

If (W/2) x (H/2) = frequency, where's the >2x frequency oversampling to prevent aliasing per Nyquist? That's what the divide by 2 does. If we define frequency as W x H, then the max lines possible are W/2 x H/2 (actually less because of >). The later definition makes the most sense to me, since the individual photosites are doing the sampling.

Taking the optics out of the picture and looking at what ends up in the sensor after sampling, we see that we need at least 2 pixels to represent the thinnest line possible without aliasing:


Putting the optics back in the picture, the OLPF slightly blurs the input to give us the anti-aliased example in the sensor.

Share this post


Link to post
Share on other sites
2 hours ago, jcs said:

If (W/2) x (H/2) = frequency, where's the >2x frequency oversampling to prevent aliasing per Nyquist? That's what the divide by 2 does.

To avoid aliasing and ensure a recoverable signal when recording at a given frequency, you need to sample at more than twice the rate of that frequency. That, more or less, is the Nyquist theorem, I think we can agree?*

So you need ≤1/2 as many cycles in a given direction as you have pixels in that direction in order to record a signal without aliasing.

Cycles of a given frequency are equal to line pairs (sinusoidal line pairs)

So that's ≤(W/2) x (H/2) line pairs without aliasing

Line pairs contain two lines (half sine waves)

So ≤(W/2) x (H/2) line pairs x 2 lines per pair = W x H lines without aliasing

Thus, if you are recording a sinusoidal zone plate, a 4k sensor can record anything up to 4k sinusoidal cycles without aliasing.

Your extra dividend comes out of nowhere. It's an attempt to apply Nyquist to Nyquist.

The pictures you posted are again of straight lines, not of sinusoidal gradients. All of your visual examples so far are of straight lines, which have infinite higher order harmonics and thus are of effectively infinite frequency (irrespective of the fundamental frequency) and so they'll alias at their edges unless you apply a low pass filter. Your latest example correctly demonstrates this, but that's all that it demonstrates. You keep posting these incredibly basic examples that don't relate to the math but just to the broad concept that things can alias. I'm not arguing that. I'm arguing that you're continuing to add an extra dividend and continuing to ignore that Nyquist applies to the highest harmonic frequency of a wave not to its fundamental frequency (the two are only the same with sine waves).

*≥2 times will prevent aliasing. >2 further guarantees the signal doesn't gray out when it's exactly out of phase.

Share this post


Link to post
Share on other sites

Moving back from monochrome sensors to Bayer sensors, because of the undersampling due to the Bayer pattern, Sony is legit in saying the F65 is the only True(-ish) 4K camera (full 4K sampling in green (important for luminance) and 2x color sampling in R & B vs. a 4K sensor). In order to make a 4K Bayer sensor not alias with 4K output, the OLPF would have to be very strong, resulting in a soft image. This matches the real-world results by Geoff Boyle: with the F65 showing no aliasing and, at the same time providing the most detailed image, with progressively lower resolution Bayer sensors providing less detail and more aliasing:

F65 (20 megapixels, sufficiently sampled to provide high detail alias-free 4K):

C300 Mark II (8.85 megapixel, undersampled, producing less detail and a lot of aliasing):

C700: slightly higher resolution than the C300 II, with less color aliasing but still has luminance aliasing:

More tests here: https://vimeo.com/geoffboyle

It's possible 8K Red could produce similar results for 4K output to the F65; not shown on Geoff's page.



17 minutes ago, HockeyFan12 said:

To avoid aliasing when recording a given frequency, you simply need to sample at more than twice the rate of that frequency. That, more or less, is the Nyquist theorem, I think we can agree.*

Why overcomplicate things with line pairs, sinusoids, harmonics, fundamentals and so on? We can also drop the > for this discussion as slight aliasing is typically OK in the real world (actually much worse is allowed as shown above). Pixels (photosite output) are samples, not line pairs, right? I think they used line pairs to reflect Nyquist, and thus 2 pixels vs. 1: the thinnest lines require 2 pixels, and thus the term line pair.

With W x H sample sites, we need to oversample by 2, and thus max W/2 x H/2 lines are possible along with an OLPF to cut frequencies higher than that (thinner lines). This math matches real-world tests as shown above with Bayer sensors: if with start with 8K (F65) we've got max detail and no aliasing, and as we go down in resolution detail drops and aliasing rises.

Share this post


Link to post
Share on other sites
37 minutes ago, jcs said:

Why complicate things with line pairs, sinusoids, harmonics, fundamentals and so on? We can also drop the > for this discussion as slight aliasing is typically OK in the real world (actually much worse is allowed as shown above). Pixels are samples, not line pairs, right? I think they used line pairs to reflect Nyquist, and thus 2 pixels vs. 1: the thinnest lines require 2 pixels, and thus the term line pair.

With W x H sample sites, we need to oversample by 2, and thus max W/2 x H/2 lines are possible along with an OLPF. This math matches real-world tests as shown above with Bayer sensors.

No. Nyquist applies to sine waves, full stop. Once you put square waves (black and white lines) in the input domain you are immediately adding infinite higher order harmonics and so, in absence of a low pass filter, you're increasing the input frequency to infinity. (Because of the overtones.)

Again, Nyquist concerns sine waves. Square waves have overtones of infinite order, so while Nyquist still concerns them, it theoretically requires of square waves a sensor with infinite pixels. So anyhow, it concerns them differently...

When we discuss Nyquist, we have to use sine waves in the input domain. Whether it's concerning sound or image. Or if we use square waves we must accept that square waves in the input domain are of theoretically infinite frequency at certain localities.

That said, in practical terms, oversampling by 2 with a Bayer sensor seems to work really well! And, in practical terms, the low pass filter knocks away most of those higher order harmonics. As does diffraction, etc. As do the limits of the printed image, etc.

Yes, oversampling helps get a better image! But oversampling by an extra factor of 2 is fairly arbitrary, and not exclusively or specifically derived from Nyquist. Imo, it's probably more related to getting full raster in R and B compensating a bit for the low pass filter.

Share this post


Link to post
Share on other sites
30 minutes ago, HockeyFan12 said:

No. Nyquist applies to sine waves, full stop. Once you put square waves (black and white lines) in the input domain you are immediately adding infinite higher order harmonics. With square waves, the frequency is theoretically infinite (or practically, whatever the lowest frequency the low pass filter and lens passes through) because of the overtones. Nyquist concerns sine waves. Square waves have overtones of infinite order sine waves.

When we discuss Nyquist, we have to use sine waves in the input domain. Or accept that square waves in the input domain are of theoretically infinite frequency.

That said, in practical terms, oversampling by 2 with a Bayer sensor seems to work really well!

It's just not because of the same 2 that's in Nyquist. It's because of many other factors working together. And to that extent the strength of the OLPF is fairly arbitrary. More tuned to taste than to math.

Nyquist applies to all continuous (analog) signals and even purely computer generated images(!), not just sinusoids: https://en.wikipedia.org/wiki/Nyquist–Shannon_sampling_theorem

Quote

In the field of digital signal processing, the sampling theorem is a fundamental bridge between continuous-time signals (often called "analog signals") and discrete-time signals (often called "digital signals"). It establishes a sufficient condition for a sample rate that permits a discrete sequence of samples to capture all the information from a continuous-time signal of finite bandwidth.

A camera sensor with an OLPF never sees a square wave anyway (no infinite bandwidth), and aliasing happens with fine fabric, brick walls etc., not just black and white test charts. We could get into Fourier analysis if you want to talk about harmonics, but that's really off topic for this discussion.

Again:

With W x H sample sites, we need to oversample by 2, and thus max W/2 x H/2 lines are possible along with an OLPF to cut frequencies higher than that (thinner lines). This math matches real-world tests as shown above with Bayer sensors: if we start with 8K (F65) we've got max detail and no aliasing, and as we go down in resolution detail drops and aliasing rises.

Without the divide by 2, we're not using Nyquist, which was your original statement in this thread- that Nyquist doesn't apply to image sensors (it does). It also apples to computer graphics in general, so we can talk about these concepts using just graphics, with no optics or sensors at all.

The OLPF strength is fairly arbitrary? Not really, it's absolutely tuned to the sensor resolution, with some cameras providing an OPLF swap when capturing at lower vs. higher resolution. Sure, there is some minor taste tuning regarding sharpness/detail vs. aliasing for all the camera manufactures who are cheating in calling their cameras 4K ;). The F65 OPLF is precisely tuned to the math and it shows!



Share this post


Link to post
Share on other sites
