Found 5 results

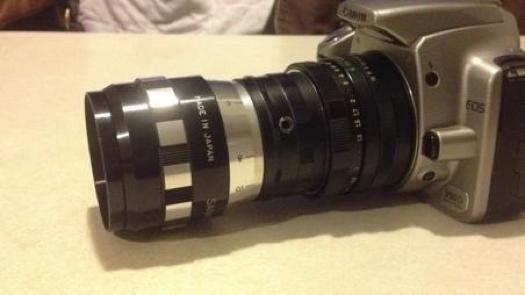

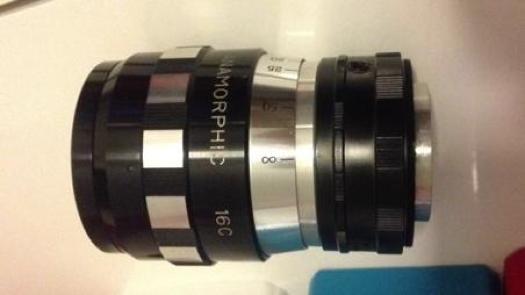

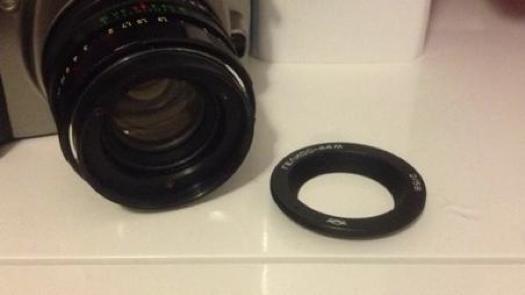

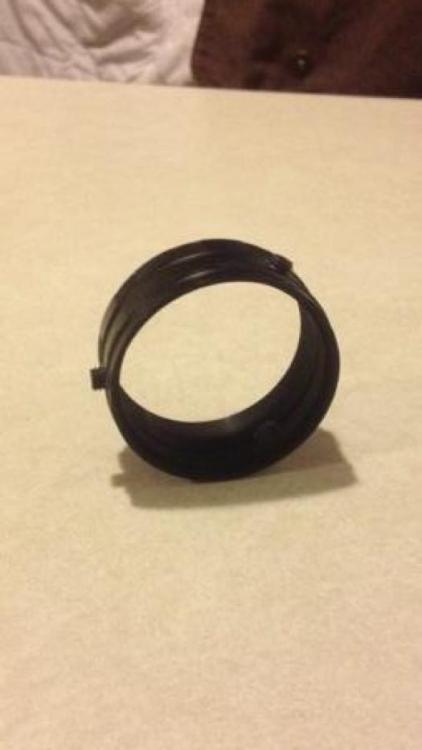

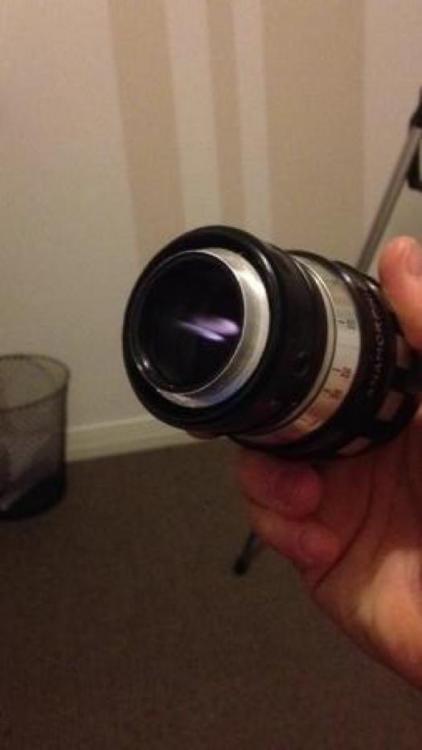

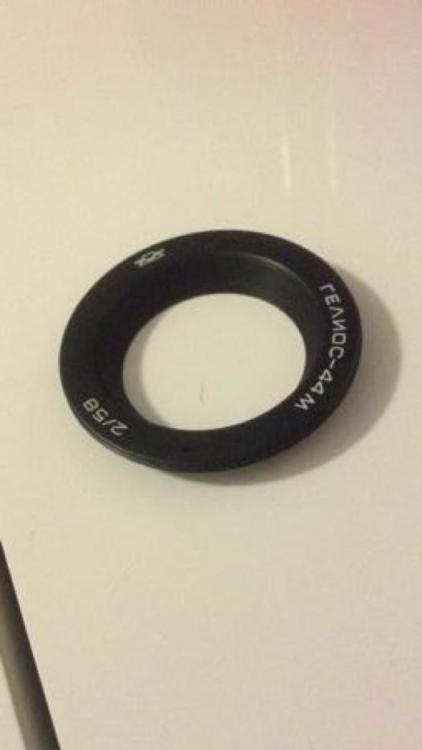

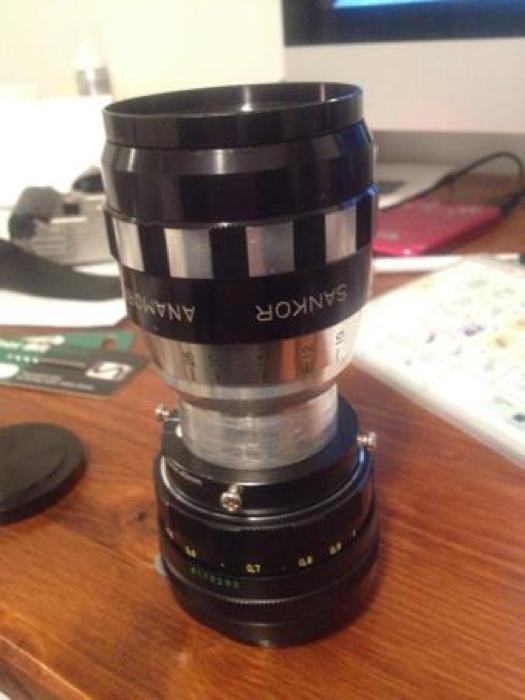

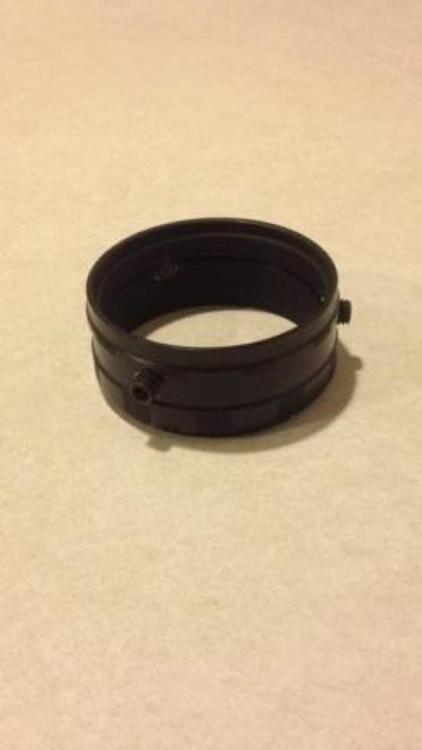

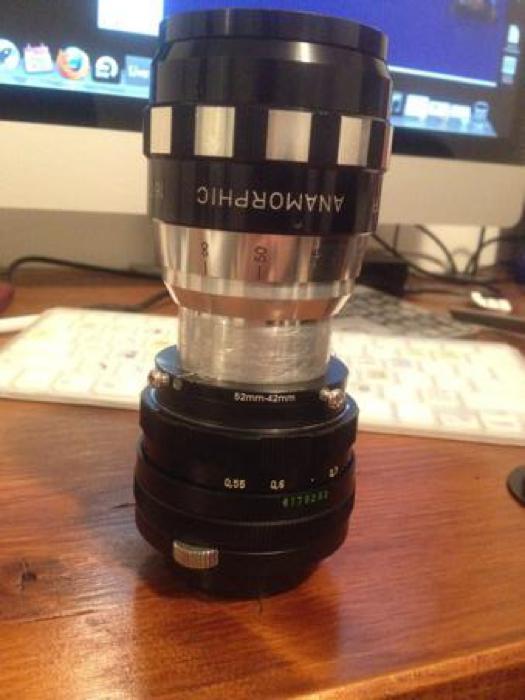

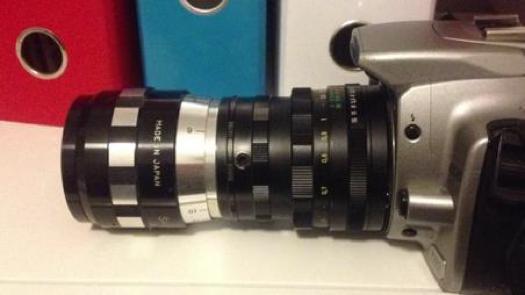

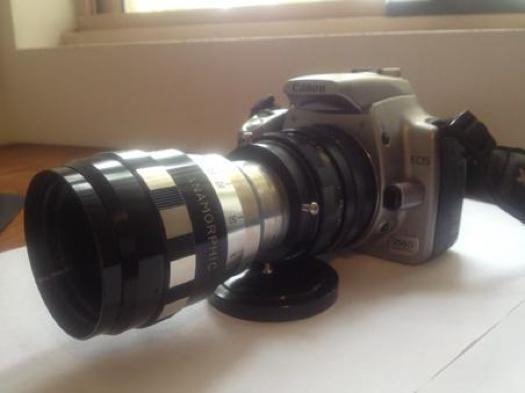

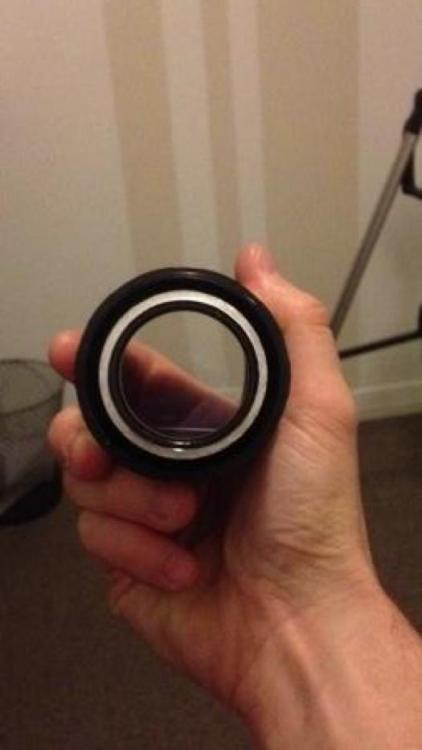

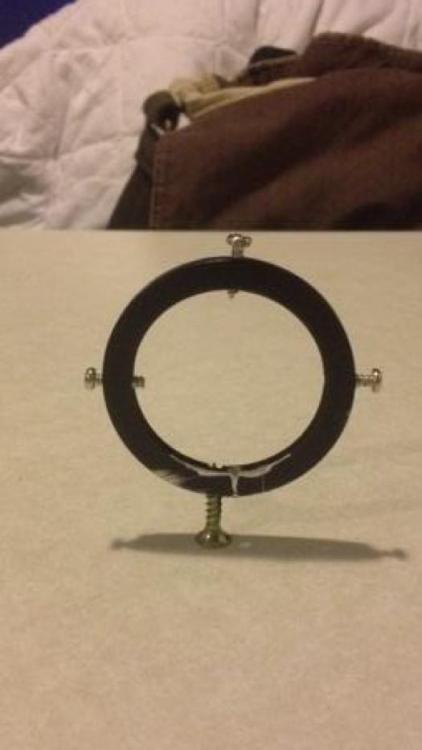

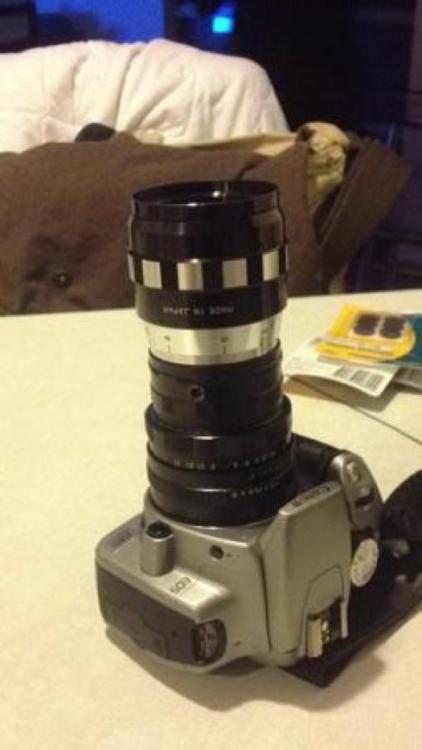

  1. Hi guys this is my first post and i'm gonna share a DIY clamp i did. I've read somewhere that a Helios 44M is the perfect companion for the Sankor 16C , so i bought that, After blowing my budget i was left with not much for a clamp. At first i used a step-down adapter which ended up looking pretty bad:   [attachment=568:1.JPG] [attachment=569:2.JPG] [attachment=570:3.JPG] [attachment=571:4.JPG]         It did the job though, for a while :D After being concerned about the safety of that rig i decided to get to work. For that used a 52mm extension tube that i found on eBay for $13: http://www.ebay.com.au/itm/52mm-Diameter-Extension-Tube-21mm-long-for-Nikon-ES-1-/290668797662?pt=AU_Cameras_Photographic_Accessories&hash=item43ad35dede Tools needed are a drill, a tap set (looks like a screw to create thread in holes), 3 screws or bolts or hex screw, and some oil (to use the tap set, it has to go smooth). I ended up using M5 hex screws (metric 5mm). Unfortunatly i didn't document the procedure but it's very easy, there's plenty of guides on google. Clamp version 2.0 looked more promising:   [attachment=572:5.JPG] [attachment=573:6.JPG] [attachment=574:7.JPG] [attachment=575:8.JPG] [attachment=576:9.JPG] [attachment=577:10.JPG]         Looks pretty similar to the clamp from Vid-Atlantic, doesn't it ?   As you can see on those pics, my Sankor has no thread. Well, i filed it as much as possible without breaking it. I didn't do that randomly, i wanted the lens as snug as possible to the clamp. It also allowed me to sit the Sankor very close to the glass of the Helios by simply removing the front ring (of the Helios):   [attachment=578:11.JPG] [attachment=579:12.JPG]     And the result is a very tight and snug unit that actually look like one single lens:     [attachment=580:13.JPG] [attachment=581:14.JPG] [attachment=582:15.JPG]     I already had all the tools needed so cost of production ended up being $13 (tube) + $2 (hex screws) If you guys can use your hands and a drill, you can do it too. :D

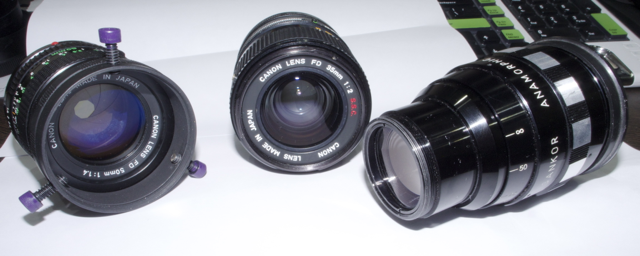

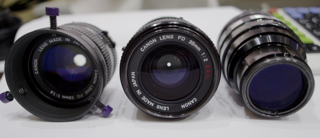

  2. IN the picture below you can see that my Sankor narrow than recommended lenses and narrow than any clamps. How to attach my Sankor? The best answer will be with big picture )) I am appreciate all help. [attachment=458:11.png] [attachment=459:2.png]

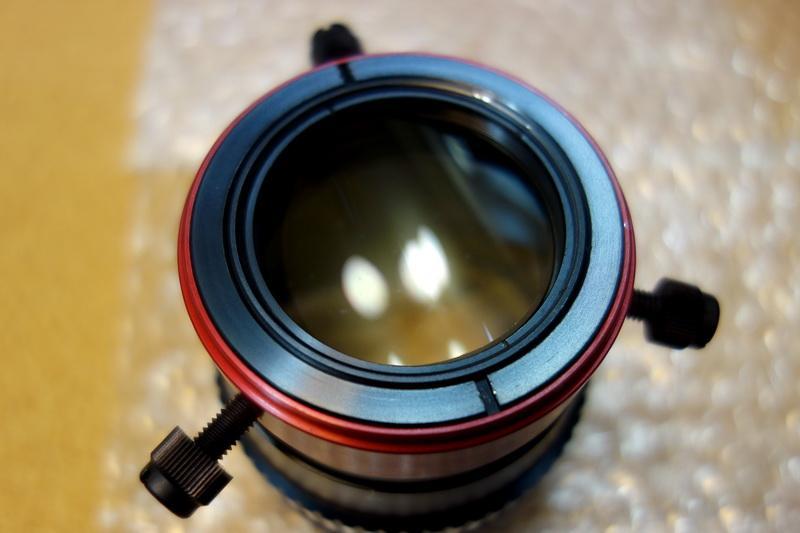

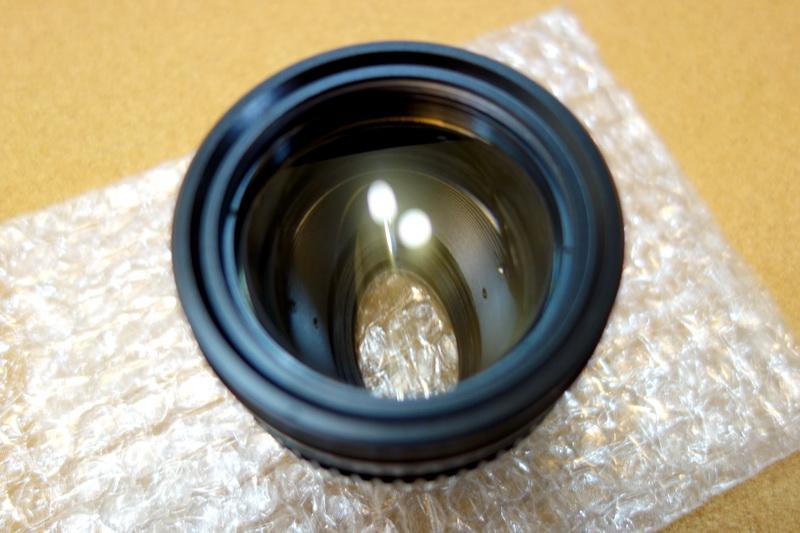

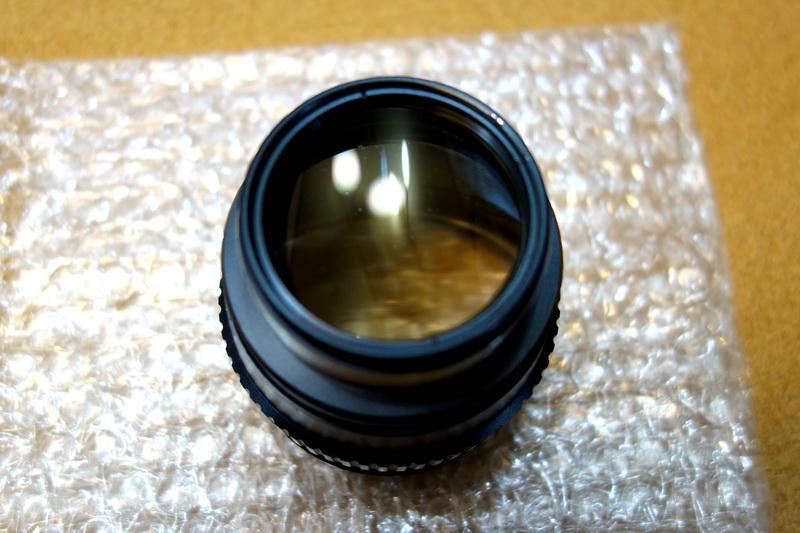

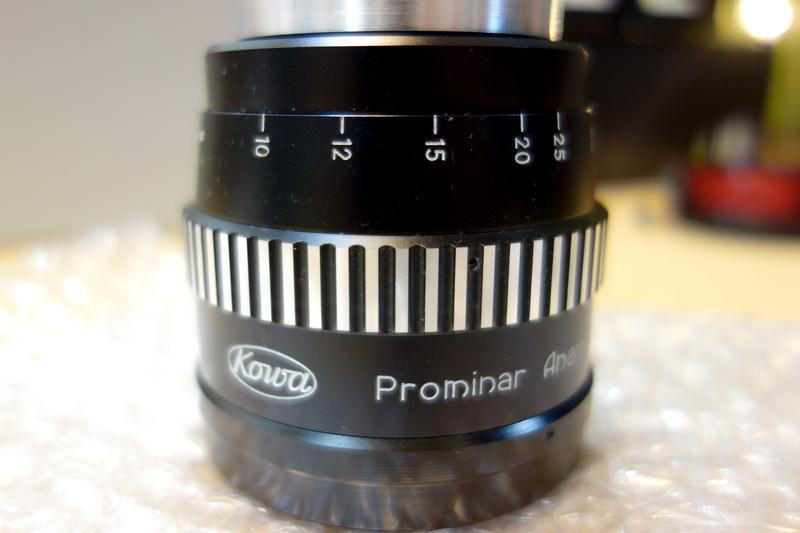

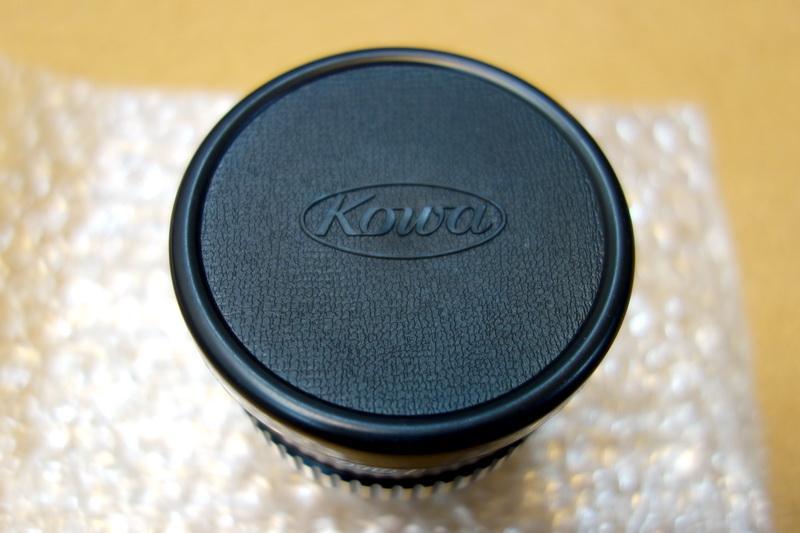

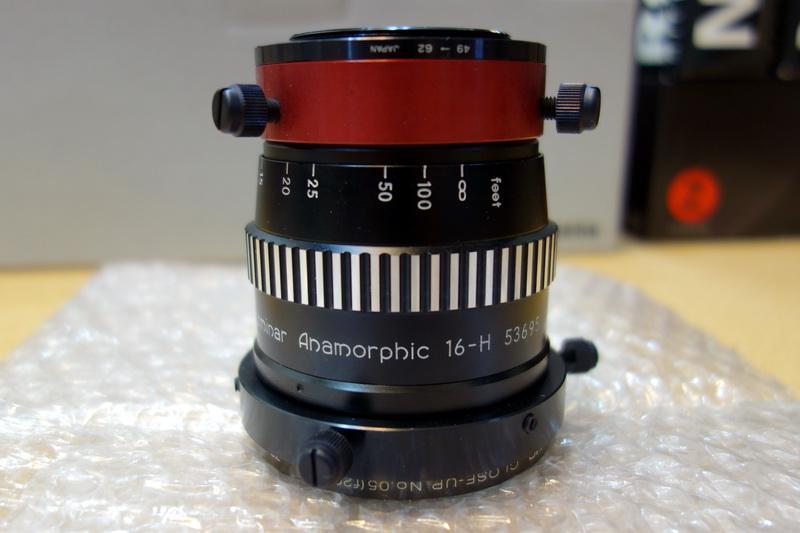

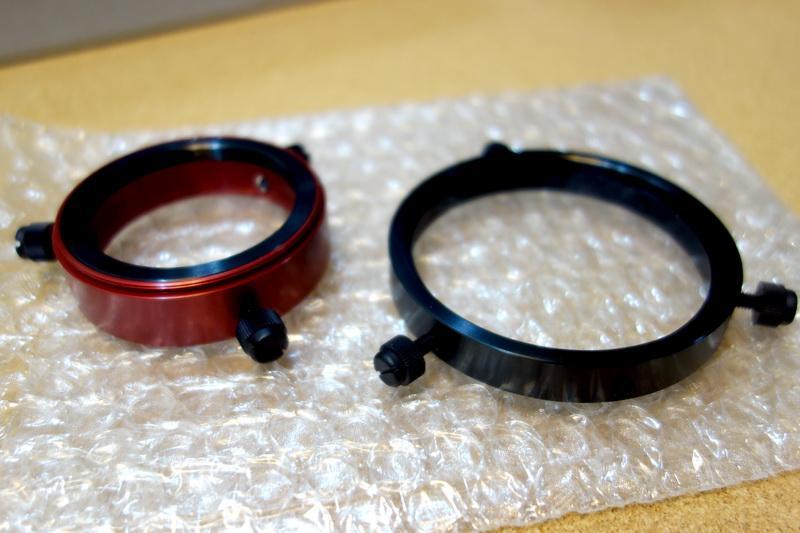

  3. -----------------SOLD---------------------------- Thank you !----------------------------------------------   Hi guys !   I don't need to explain how great this particular model is, arguably the best from Kowa.   Unfortunately, it doesn't fit my work , mostly TV projects, so it has been sitting in my bag for 6 months now... Before i decide to put this set on ebay, i'd rather make someone of the community happy ;)   -Kowa Prominar Anamorphic 16-H (2x) serial number 53695 (Purchased in Tokyo) As you can see on the pics, the lens is in great condition. No external scratch on the body, the glass is clear and the focus ring is smooth. With original front & rear caps.   -Redstan lens clamp (red) This is the model for the 16-H, a perfect fit (rear thread becomes 62mm) -Redstan front filter , perfect fit as well (front thread becomes 72mm)   For those who like, i'll give as present (not a big deal...) : -one diopter Kenko N0.05 (f2000) -one 72mm cap -one 49mm to 62mm step-up ring   Asking price: 600 USD (Shipping by EMS & insurance included) Please contact me -----------------SOLD---------------------------- Thank you !----------------------------------------------   [attachment=360:kowa-8.jpg][attachment=359:kowa-7.jpg][attachment=358:kowa-6.jpg][attachment=357:kowa-5.jpg][attachment=356:kowa-4.jpg][attachment=355:kowa-3.jpg][attachment=353:kowa-1.jpg][attachment=354:kowa-2.jpg].
  4. Hey all, Finally scored a Bolex 8/19/1.5 anamorphic lens, and I'm curious as to my mounting options. Hopefully, someone who has one of these can clue me in. Any help would be greatly appreciated! -0z-
  5. Hello everybody, Redstan is out of stock right now and I don't know that they'll be restocking. I'd prefer one of the red clamps if possible. Also, I'm looking for a red front clamp and and a diopter to get a closer minimum focus. The closer and more clear the better. Thanks for helping if you can! Trey treyvollmer3@gmail.com
×
×
