  1. Be careful, built with plastic, including lens.
  2. What is difficult? The best way is using flare, with grid setting on viewing screen, to see the flare whether is horizontal. But if really no flare, you just take circle/square/rectangle object, can easy to find distortion after decompressed.
  3. Nothing to do with fps. To use 2X anamorphic lens, 4:3 video is the best ratio.
  4. IMO, this lens should work with 100mm to complete avoid vignetting. And since it is not easy to use as dual focus, focus ring is needed. FM(Focus Module) was design for it. BTW, 16H/8Z/ELMOSCOPE II are perfect for 85mm without vignetting.
  5. Ebay, search for these key words!

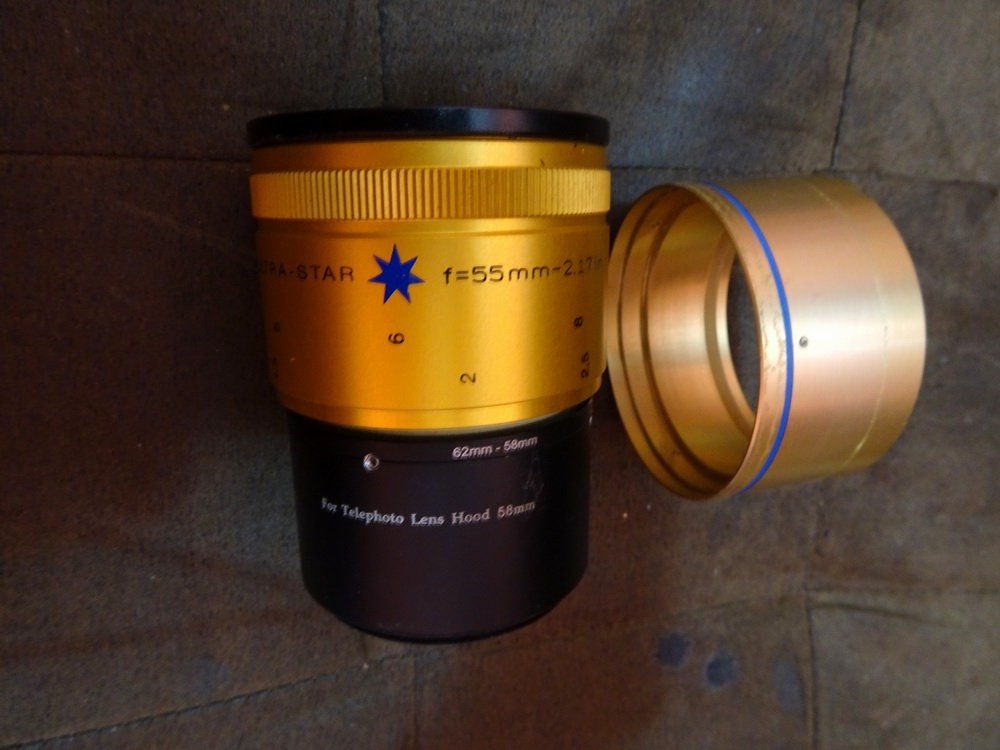

  6. My mounting way for 58mm filter thread (Canon 85mm f1.8) taking lens is here. BTW, this lens is easy to add(glue a step up ring) non-rotating filter thread for CPL

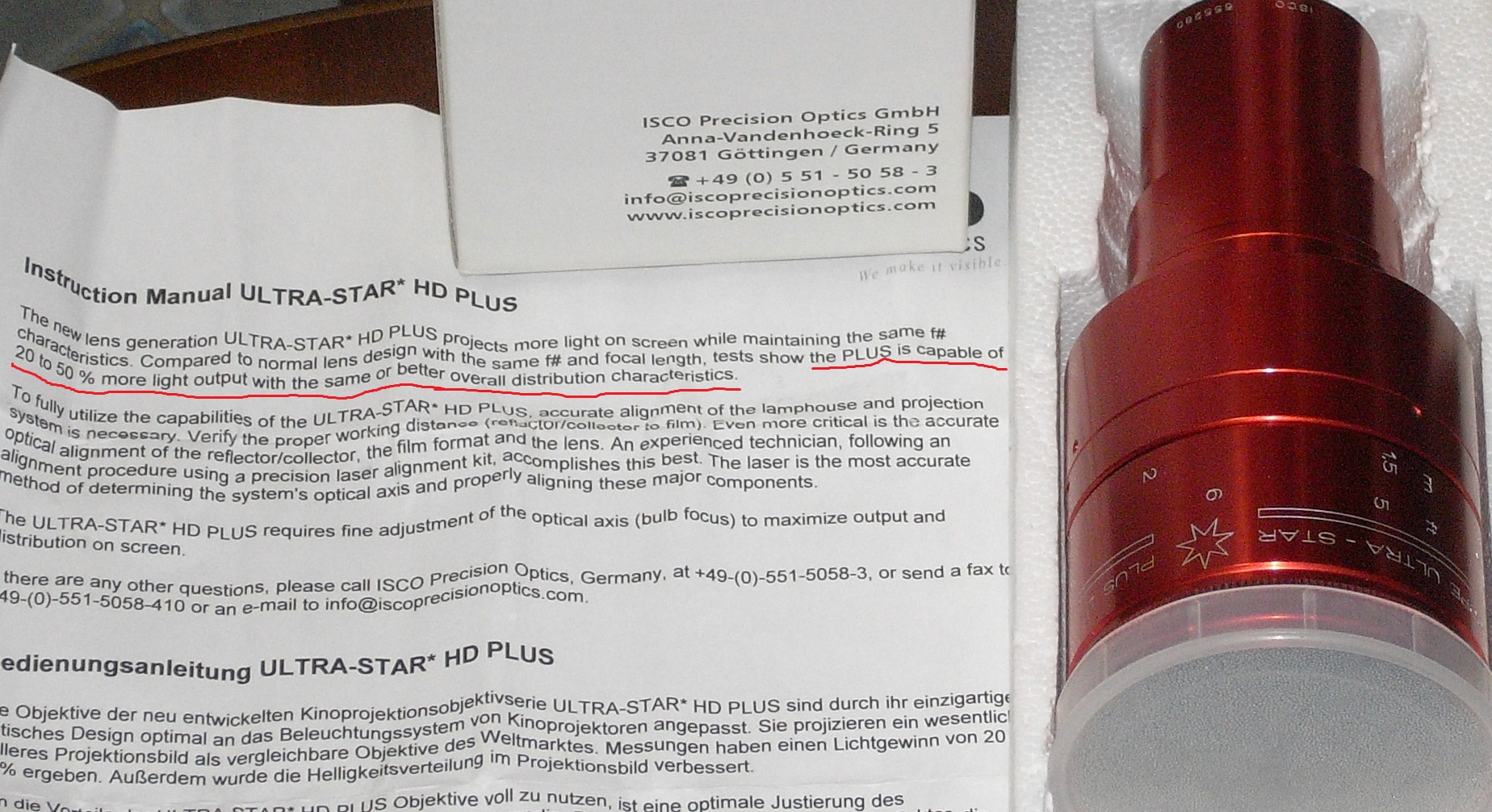

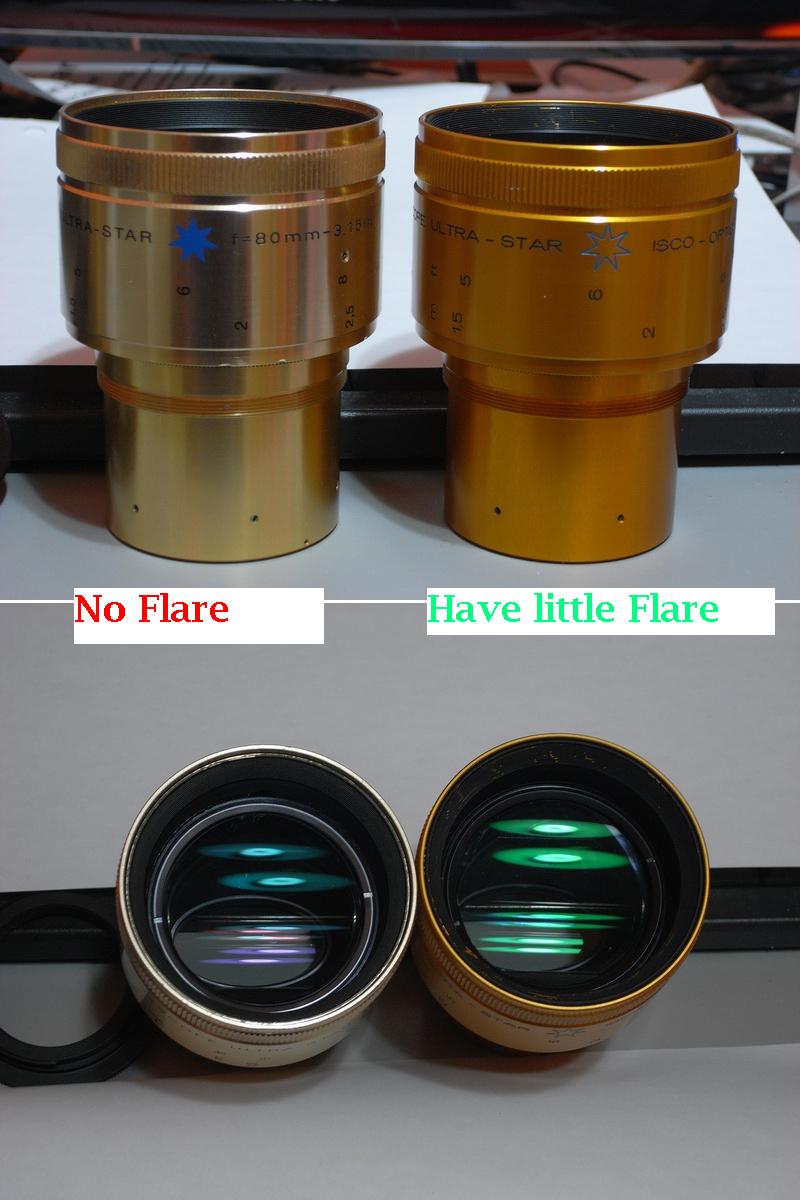

  7. usually, red one is more expensive. I sold mine earlier. And red one has the least flare due to its coating. following all pictures were from my lenses.

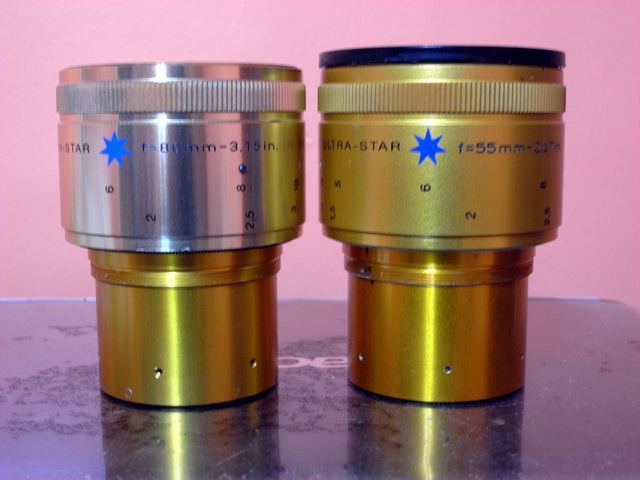

  8. Totally different shape. Big one’s front glass is much bigger. So adding filter is not easy, need 82mm or above I think. Theoretically, big one has higher resolution. I posted both samples before.
  9. ken


    Hi, I can tell you this one is exactly renamed 16D. https://www.ebay.com/itm/Sankor-Anamorphic-35-J-Projection-Lens/223770656675
  10. ken


    16H and D, the difference is only view angle. the front and rear glasses size are almost same. I never own S. But looks it is close to D. might be a little bit wider.
  11. Looks like this lens was modified somewhere. There are some little screws which can disassemble all parts. I also mods it as no lock(re-drilled holes to make it) . The rear big ring is not necessary. It was for adapting to around 71mm(70.65?) projector lens.
  12. I also like to mount this anamorphic lens and take photos vertically. So just looks as normal, not widescreen. ? 1. F1.8 2. F5.6 (to get good flare, need to use small aperture)
  13. I am pretty sure Kowa B&H, 16H, 8Z and Elmoscope II (there are other re-branded name too) have the same optical glasses. Only difference are rear diameter, distance marks(only Elmo use metric system, so I keep it) and coatings, actually two color amount them. Except 8Z, I owned all other three before. I don't know why B&H's price is higher. So I sold it. Its rear diameter is bigger, so unable to mount closer to some lens. I also like metric system.
  14. I don't think so. Here are samples of Elmoscope II (=16H)with Canon 6D, 85mm f1.8 lens @f1.8.
  15. This is older model. need to modify to use with FM single focus lens. Schneider Cinelux lens are unable to use as double focus. But it is perfect to fit with FM lens. http://anamorphicshop.com/product/fm-lens/ But they like ISCO, very sharp with poorer flares(so I think golden anamorphic lens has the same characters). Maybe older model's flare has a little bit better. I found their coatings are not exactly the same.
  16. The min focus distance is 1.5m. if you want flares, just forget all golden lenses. ?
  17. I can tell you a little bit. 1. same as 3, but might be different in coating. it is multi-color coating. 2. earlier version. IMO, 1 & 3 are better. If I remember correctly, its front rotating. 3. If I remember correctly, coating is green, more flare than 1. All of them can be used on full frame camera(3:2 photo mode) with 100mm lens without vignette at infinity.
  18. Usually, various single focus solutions has no focal length changed, which is insignificant. My way has more changed. ?
  19. maybe no lock if not seen “lock” mark. Not every lens has it.
  20. never own this lens, usually to lock/unlock focus ring by push and pull front part.
  21. What I mean is this lens is a better choice comparing to this video: BTW, from a very basic test, I found this lens is a super wide lens comparing to most of 1.33x lens. Basically, it’s front glass and rear glass space is near none.
