Blackmagic Micro Studio Camera with 4K Micro Four Thirds sensor, $1295

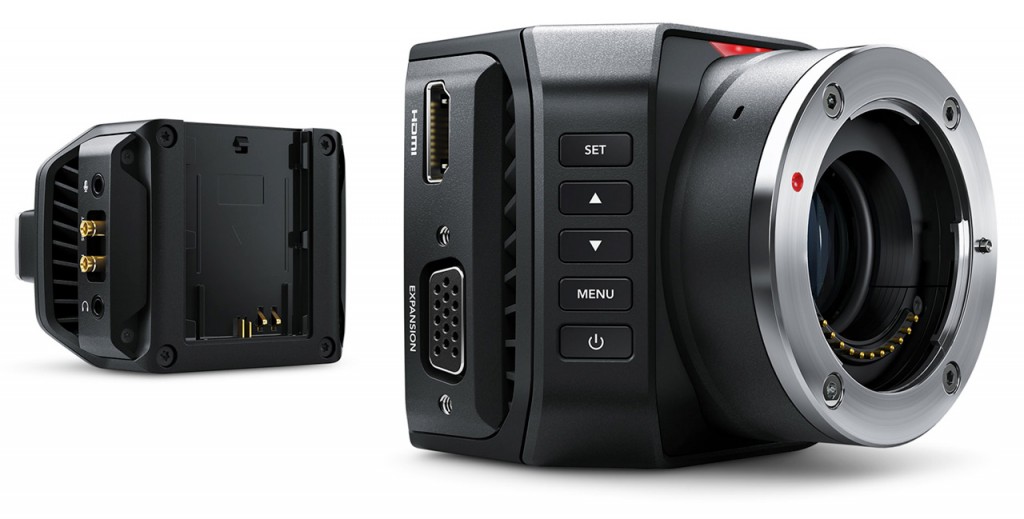

Taking the same form as the previously leaked Blackmagic Micro Cinema Camera, the Micro Studio Camera features a Micro Four Thirds 13.056mm x 7.344mm size sensor and lens mount.

Details of all three of Blackmagic's new cameras are now live on their website, along with Resolve 12 and more.

Sensor Size#

13.056mm x 7.344mm

Shooting Resolutions#

3840 x 2160, 1920 x 1080

Frame Rates#

HD 1080p23.98, 24, 25, 29.97, 30, 50, 59.97, 60, 1080i50, 59.94, Ultra HD 2160p23.98, 24, 25, 29.97, 30

Focus#

Remote focus control via expansion connector or ATEM Switcher CCU protocols via SDI when using compatible lenses.

Iris Control#

Iris control via Up and Down buttons, remote control via expansion connector or ATEM Switcher CCU protocols via SDI when using compatible lenses.

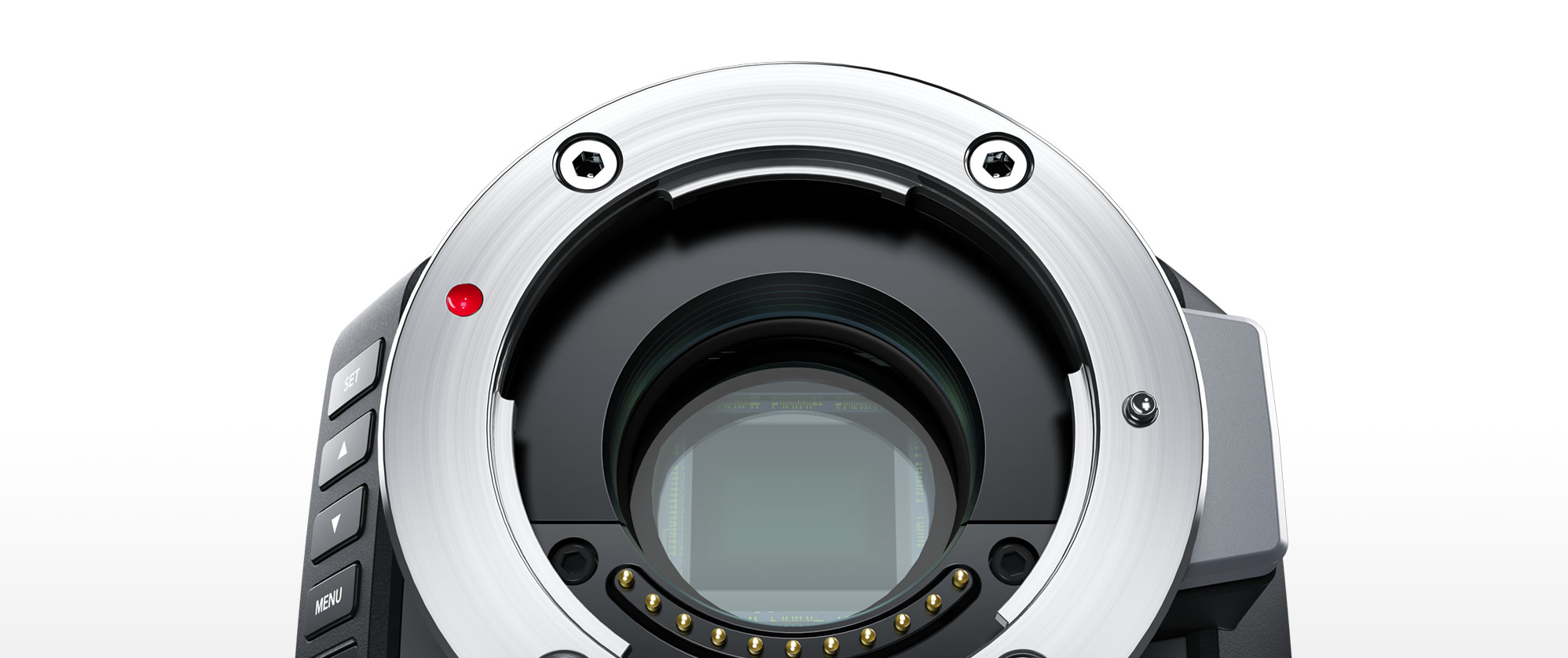

Lens Mount#

Active MFT mount

Controls#

5 control buttons including Set, Up, Down, Menu, and Power.

Microphone#

Integrated stereo microphone, active when camera is recording.

Mounting Options#

1 x 1/4" (top), 3 x 1/4" (bottom)

SDI Video Output#

1 x 6G-SDI 10-bit 4:2:2 via DIN 1.0/2.3 connector.

SDI Video Input#

1 x 6G-SDI 10-bit 4:2:2 via DIN 1.0/2.3 connector.

SDI Audio Output#

2 channel embedded audio support in SDI stream.
